Overview

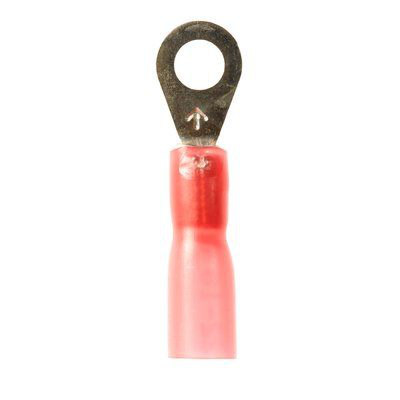

3M™ Scotchlok™ Color-Coded Heat Shrink Large Ring Tongue Terminal ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
- Brazed-seam terminal uses red pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
- When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
- Standard-style ring tongue fits around the stud
- Stud size #8
- Accommodates wire sizes 22 to 18 AWG
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a maximum temperature of 221 degrees F (105 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- 25/carton, 125/case
Specifications
- 3M ID: 80611465586
- Agency Approvals: UL and CSA
- Barrel Style: Brazed
- Brand: Scotchlok™
- Clearance (C): 0.18 Inch
- Color: Red
- Conductor Size: 22 - 18 AWG
- Conductor Sizes: 22 - 18 AWG
- CSA File Number: LR22190
- Dimension E: 0.84 Inch
- Insulation Material: Heat Shrink
- Length: 1 Inch
- Length (Metric): 25.4 mm
- Material: Plastic
- Maximum Operating Temperature (Celsius): 105 Degree Celsius
- Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
- Maximum Recommended Voltage Rating: 600 V
- Maximum Wire Gauge: 18 AWG
- Minimum Wire Gauge: 22 AWG
- Operating Temperature Range (Celsius): -40 °C to 105 °C
- Operating Temperature Range (Fahrenheit): -40 °F to 221 °F
- Packaging: 25 per bottle
- RoHS 2011/65/EU Compliant: Yes
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Stud Size: #8
- Terminal Style: Standard
- Terminal Type: Ring
- Thickness: 0.03 Inch
- Thickness (Metric): 0.76 mm
- Trademark: Scotchlok
- Type: Standard
- UL File Number: E23438
- Width: 0.31 Inch
- Width (Metric): 7.87 mm
