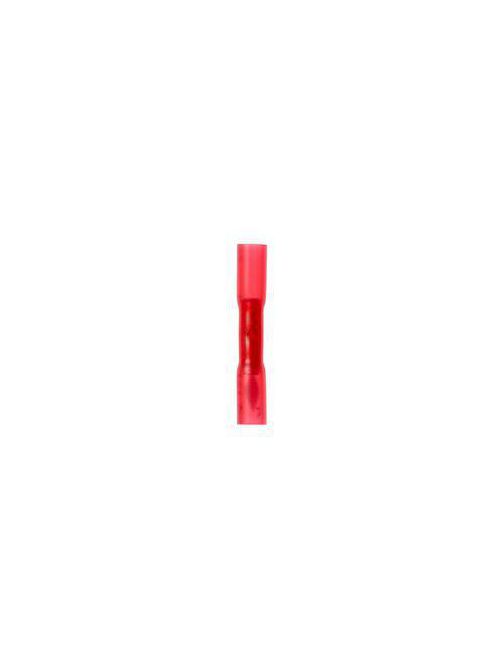

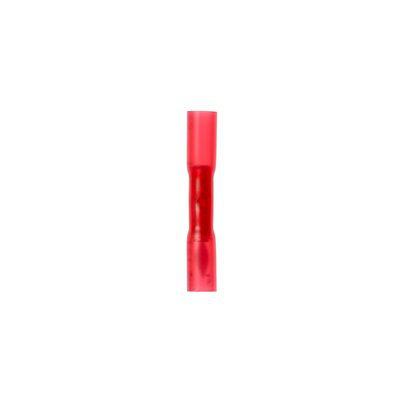

3M MH18BCX 25/Bottle Heatshrink Seamless Butt Connector
$2.57/ea
Usually ships within 8 to 12 Days
ea
Adding...
Order in multiples of 25 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MH18BCX
North Coast Part # 673726

Overview

3M™ Scotchlok™ Color-Coded Heat Shrink Butt Connector ensures an ideal fit with great performance. The seamless barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Heat Shrink Butt Connector is color-coded for quick and easy identification of the wire size required. This versatile connector has a seamless barrel that is covered by see-through, pre-insulated transparent tubing to provide seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. RoHS 2011/65/EU Compliant.

  • Seamless barrel uses red pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Built-in wire stop for correct positioning
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Specifications

  • 3M ID: 80611465552
  • Barrel Length: 0.28 Inch
  • Barrel Style: Seamless
  • Brand: Scotchlok™
  • Color: Red
  • Conductor Size: 22 - 18 AWG
  • Conductor Sizes: 22 - 18 AWG
  • Connection Type: Butt
  • CSA File Number: LR22190
  • Insulation Material: Heat Shrink
  • Length: 1.2 Inch
  • Length (Metric): 30.48 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 18 AWG
  • Minimum Wire Gauge: 22 AWG
  • Packaging: 25 per bottle
  • Product Type: Connector
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Terminal Style: Standard
  • Terminal Type: Butt Connectors
  • Thickness: 0.031 Inch
  • Trademark: Scotchlok

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858909
GTiN 00051128589090
Length 1.2 in
Color Red
Type Standard
Thickness 0.031 in
Barrel Type Seamless
Material Heat Shrink
Terminal Style Standard
Terminal Type Butt Connectors
Product Type Connector
Conductor Size 22-18 AWG
Connection Type Butt
Family Brand Name 3M
Insulation Material Heat Shrink
Terminal Size 22 - 18 AWG
Max Operating Temperature 221 degrees F
Barrel Length 0.28 in
Sub Brand Scotchlok
