3M MN4-38RK MN4-38RK NYL BRAZED RIN
Product image thumbnail 0
Product image thumbnail 1
$1.77/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MN4-38RK
North Coast Part # 212827

Features

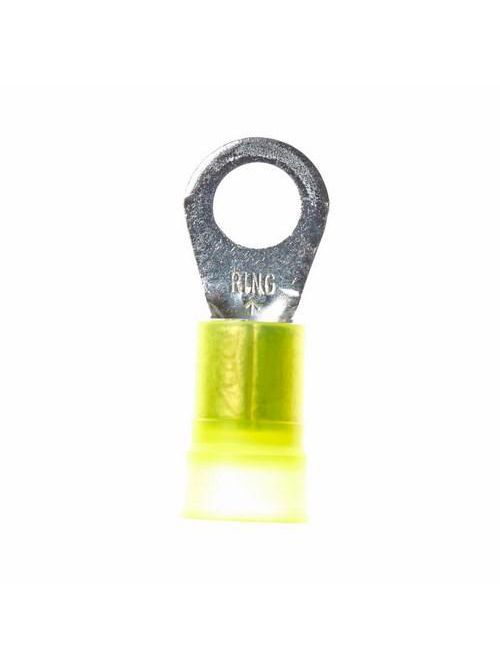

  • Yellow nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Flared portion of the nylon sleeve offers easy insertion of wires
  • A ring is the standard style of tongue. The safest and most reliable; it cannot be removed unless mounting screw is removed.
  • Standard-style ring tongue fits around the stud
  • Stud size 3/8 in
  • Accommodates wire size 4 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 200/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80008006167
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Connection Width (Imperial): 0.375 in
  • Connection Width (Metric): 9.525 mm
  • Overall Length (Imperial): 0.74 in
  • Overall Width (Imperial): 0.68 in
  • Terminal Type: Ring

Overview

UPC 05400708280
GTiN 00054007082804
Type Ring
Material Nylon
Family Brand Name Scotchlok
Terminal Size 4 AWG
Sub Brand Scotchlok
Length 0.74 in
Width 0.68 in
Thickness 0.075 in
Barrel Type Brazed
Stud Size 3/8 in
Terminal Style Standard
Terminal Type Ring
Conductor Size 4 AWG
Insulation Material Nylon
Barrel Length 0.47 in
Overall Length 0.74 in
