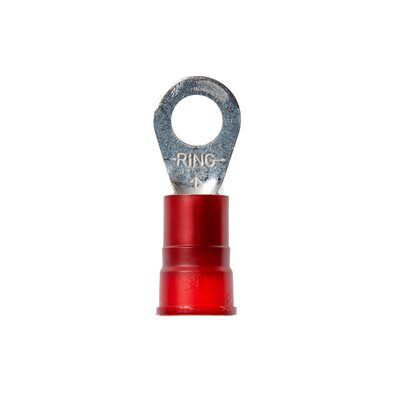

3M MN8-14R/SX 10/Bottle Nylon Insulated Ring
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$5.03/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MN8-14R/SX
North Coast Part # 673723

Features

  • Red nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 1/4 in
  • Accommodates wire size 8 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 10/carton, 100/case

Specifications

  • Color Family: Red
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 8 AWG
  • Minimum Conductor Size: 8 AWG
  • Overall Length (Imperial): 1.26 in
  • Overall Length (Metric): 32.004 mm
  • Overall Width (Imperial): 0.47 in
  • Overall Width (Metric): 11.938 mm
  • Product Color: Red
  • Terminal Type: Ring

Overview

GTiN 00051128586358
Length 1.26 Inch
Finish Tin Plated
Width 0.47 in
Color Red
Type Short Sleeve, Standard
Thickness 0.05 in
Barrel Type Brazed
Material Copper
Stud Size 1/4 in
Terminal Style Standard
Terminal Type Ring
Conductor Size 8 AWG
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 8 AWG
Sub Brand Scotchlok
Product UPC 05112858635
Overall Length 1.26 in
