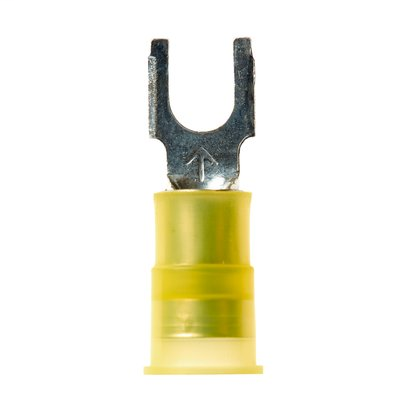

3M MNG10-10FBX MNG10-10FBX BLOCK FO
Product image thumbnail 0
Product image thumbnail 1
$1.36/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG10-10FBX
North Coast Part # 154671

Specifications

  • Thickness: 0.04 Inch
  • Trademark: Scotchlok
  • Width: 0.32 Inch
  • Terminal Style: Block
  • Insulation Material: Nylon with Insulation Grip
  • Stud Size: 10
  • Packaging: 50 per bottle
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Clearance (C): 0.29 Inch
  • UL File Number: E23438
  • Maximum Insulation Outer Diameter: 0.250 Inch
  • Dimension E: 0.84 Inch
  • Agency Approvals: UL and CSA
  • Barrel Style: Butted
  • CSA File Number: LR22190
  • Length: 1.03 Inch
  • Conductor Sizes: 12 - 10 AWG
  • Terminal Type: Fork
  • Brand: Scotchlok

Documents

Overview

UPC 05112858718
GTiN 00051128587188
Length 1.03 in
Finish Tin Plated
Width 0.32 in
Color Yellow
Type Short Sleeve, Block
Thickness 0.04 in
Barrel Type Butted
Material Copper
Stud Size #10
Terminal Style Block
Terminal Type Fork
Conductor Size 12-10 AWG
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
