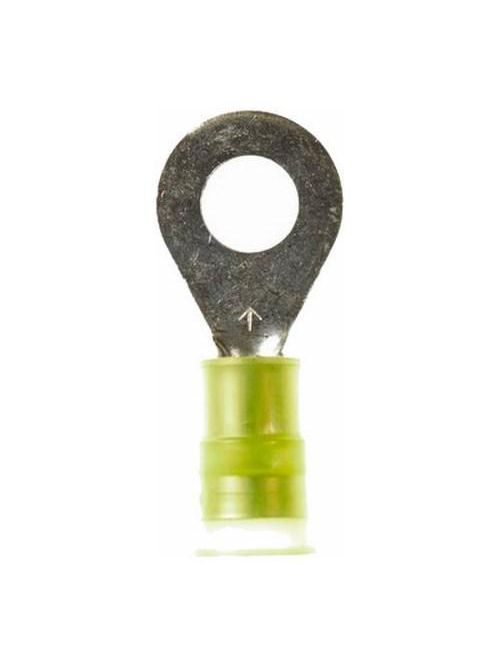

3M MNG10-14R/SK Nylon Insulated with Insulation Grip Ring Tongue Terminal
Product image thumbnail 0
Product image thumbnail 1
$1.02/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG10-14R/SK
North Coast Part # 818410

Overview

A ring is the standard style of tongue. The safest and most reliable; it cannot be removed unless mounting screw is removed.

Specifications

  • Maximum Insulation Outer Diameter: 0.25 Inch
  • Width: 0.53 Inch
  • Clearance (C): 0.44 Inch
  • Trademark: Scotchlok
  • Barrel Style: Butted
  • RoHS 2011/65/EU Compliant: Yes
  • UL File Number: E23438
  • Thickness: 0.04 Inch
  • Conductor Sizes: 12 - 10 AWG
  • Brand: Scotchlok
  • Agency Approvals: UL and CSA
  • Dimension E: 0.99 Inch
  • CSA File Number: LR22190
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Terminal Style: Standard
  • Terminal Type: Ring
  • Packaging: 500 per bulk box
  • Barrel Length: 0.25 Inch
  • Length: 1.26 Inch
  • Insulation Material: Nylon with Insulation Grip
  • Stud Size: 1/4 Inch

Documents

Categories

Overview

UPC 05400701938
GTiN 00054007019381
Type Ring
Material Nylon
Family Brand Name 3M
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 1.26 in
Width 0.53 in
Thickness 0.04 in
Barrel Type Butted
Stud Size 1/4 in
Terminal Style Standard
Terminal Type Ring
Conductor Size 12 To 10 AWG
Insulation Material Nylon With Insulation Grip
Barrel Length 0.25 in
