3M MNG10-38R/SK MNG10-38R/SK D-01-
$1.02/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG10-38R/SK
North Coast Part # 494402

Features

  • Yellow nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

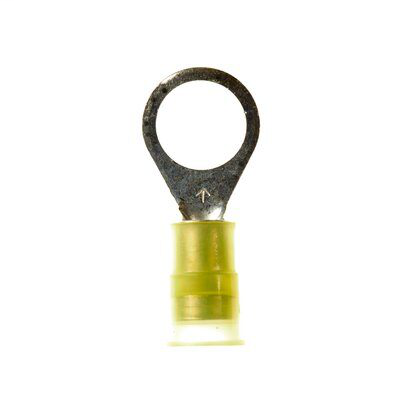

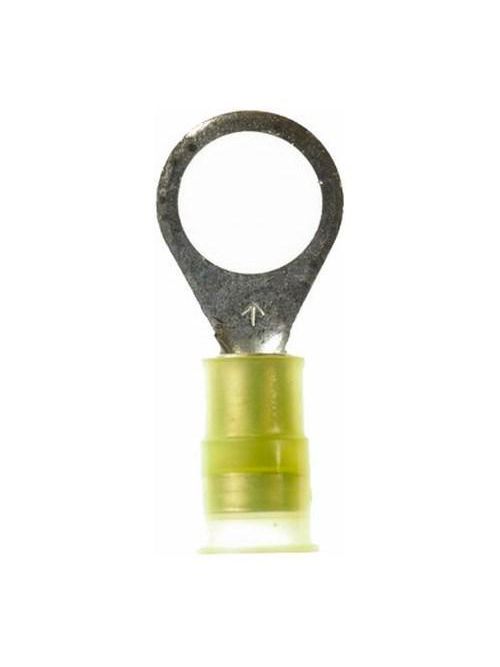

  • 3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • A ring is the standard style of tongue. The safest and most reliable; it cannot be removed unless mounting screw is removed.
  • Standard-style ring tongue fits around the stud
  • Stud size 3/8 in
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610048763
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Color Family: Yellow
  • Connection Width (Imperial): 0.375 in
  • Connection Width (Metric): 9.525 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Overall Length (Imperial): 1.26 in
  • Overall Width (Imperial): 0.54 in
  • Product Color: Yellow
  • Terminal Type: Ring

Overview

UPC 05400701942
GTiN 00054007019428
Length 1.26 in
Finish Tin Plated
Width 0.54 in
Color Yellow
Type Ring Tongue, Short Sleeve, Standard
Thickness 0.04 in
Barrel Type Butted
Material Copper
Stud Size 3/8 in
Terminal Style Standard
Terminal Type Ring
Conductor Size 12-10 AWG
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 12 - 10 AWG
Max Operating Temperature 105 C
Barrel Length 0.25 in
Sub Brand Scotchlok
Overall Length 1.26 in
