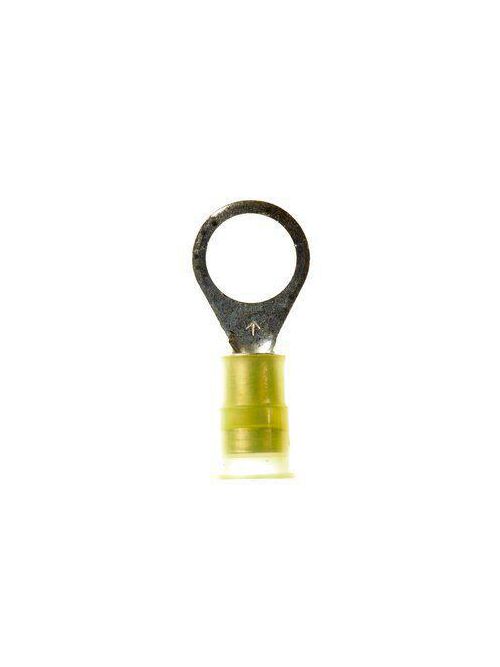

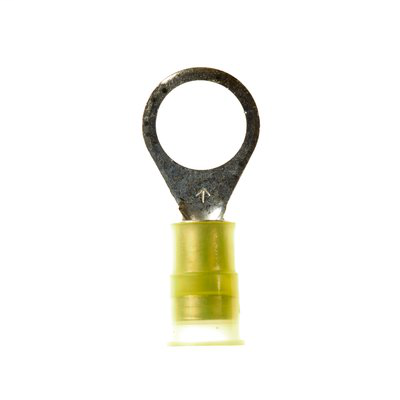

3M MNG10-38R/SX 50/Bottle Nylon Insulated Ring
$1.90/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG10-38R/SX
North Coast Part # 158023

Overview

3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

  • Yellow nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 3/8 in
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • 3M ID: 80611466311
  • Agency Approvals: UL and CSA
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Clearance (C): 0.44 Inch
  • Color: Yellow
  • Conductor Size: 12 - 10 AWG
  • Conductor Sizes: 12 - 10 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.99 Inch
  • Insulation Material: Nylon with Insulation Grip
  • Length: 1.26 Inch
  • Length (Metric): 32 mm
  • Material: Plastic
  • Maximum Insulation Outer Diameter: 0.250 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 12 AWG
  • Operating Temperature Range (Celsius): -40 °C to 105 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 221 °F
  • Packaging: 50 per bottle
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: 3/8 Inch
  • Terminal Style: Standard
  • Terminal Type: Ring
  • Thickness: 0.04 Inch
  • Thickness (Metric): 1.01 mm
  • Trademark: Scotchlok
  • Type: Standard
  • UL File Number: E23438
  • Width: 0.54 Inch
  • Width (Metric): 13.71 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858985
GTiN 00051128589854
Length 1.26 in
Width 0.54 in
Color Yellow
Type Standard
Thickness 0.04 in
Barrel Type Butted
Material Plastic
Stud Size 3/8 in
Terminal Style Standard
Terminal Type Ring
Conductor Size 12-10 AWG
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 12 - 10 AWG
Max Operating Temperature 221 degrees F
Sub Brand Scotchlok
