3M MNG10-6FLX 50/Bottle Nylon Insulated Locking Fork
$1.78/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG10-6FLX
North Coast Part # 673718

Specifications

  • Agency Approvals: UL and CSA
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Trademark: Scotchlok

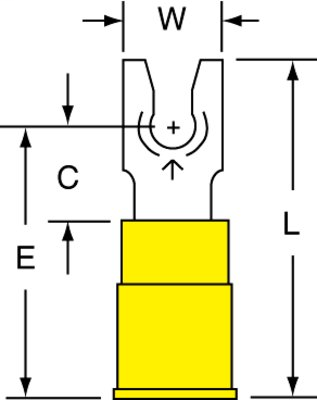

  • Maximum Lock Width: 0.30 Inch
  • Clearance (C): 0.28 Inch
  • Conductor Sizes: 12 - 10 AWG
  • Barrel Style: Butted
  • Brand: Scotchlok
  • CSA File Number: LR22190
  • Stud Size: 6
  • Maximum Insulation Outer Diameter: 0.250 Inch
  • Packaging: 50 per bottle
  • Width: 0.28 Inch
  • Terminal Style: Locking
  • Dimension E: 0.83 Inch
  • Thickness: 0.04 Inch
  • UL File Number: E23438
  • RoHS 2011/65/EU Compliant: Yes
  • Insulation Material: Nylon with Insulation Grip
  • Terminal Type: Fork
  • Length: 1.03 Inch

Documents

Overview

UPC 05112858794
GTiN 00051128587942
Type Fork
Material Nylon
Stud Size 6
Family Brand Name 3M
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 1.03 in
Width 0.28 in
Thickness 0.04 in
Barrel Type Butted
Terminal Style Locking
Terminal Type Fork
Conductor Size 12 To 10 AWG
Insulation Material Nylon With Insulation Grip
