3M MNG10-6RX MNG10-6RX NYLON INSULA
$1.83/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG10-6RX
North Coast Part # 673714

Features

  • Yellow nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

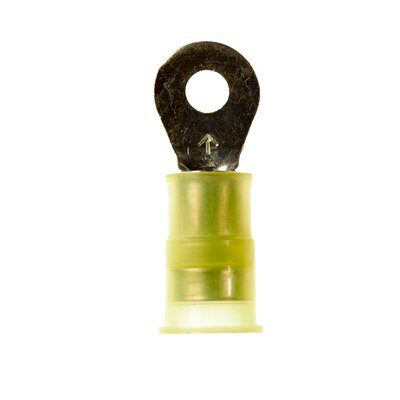

  • 3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Standard-style ring tongue fits around the stud
  • Stud size #6
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611458292
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Color Family: Yellow
  • Connection Width (Imperial): 0.138 in
  • Connection Width (Metric): 3.5 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • National Stock Number: 5940002048990
  • Overall Length (Imperial): 1.03 in
  • Overall Length (Metric): 26.16 mm
  • Overall Width (Imperial): 0.38 in
  • Overall Width (Metric): 9.65 mm
  • Product Color: Yellow
  • Terminal Type: Ring

Overview

UPC 05112858684
GTiN 00051128586846
Length 1.03 in
Width 0.38 in
Color Yellow
Type Ring
Thickness 0.04 in
Barrel Type Butted
Material Plastic
Stud Size 6
Terminal Style Standard
Terminal Type Ring
Conductor Size 12-10 AWG
Family Brand Name Scotchlok
Insulation Material Nylon,Insulation Grip
Terminal Size 12 - 10 AWG
Max Operating Temperature 105 C
Sub Brand Scotchlok
Overall Length 1.03 in
