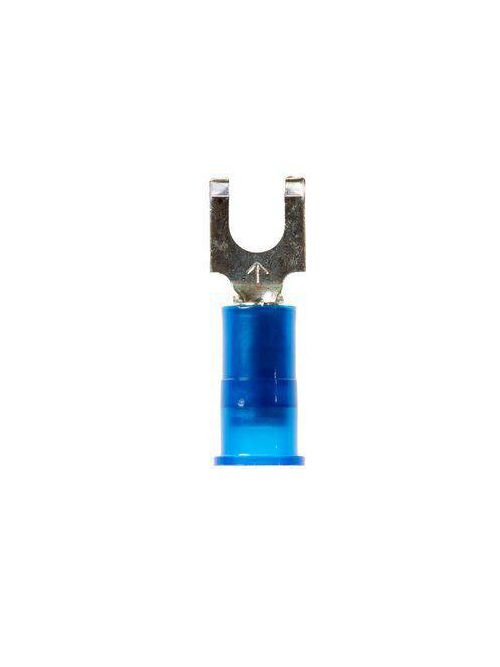

3M MNG14-10FFBX 100/Bottle Fork Nylon Insulated Flanged Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.31/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG14-10FFBX
North Coast Part # 673706

Specifications

  • Stud Size: 10
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Brand: Scotchlok
  • Trademark: Scotchlok
  • RoHS 2011/65/EU Compliant: Yes
  • Thickness: 0.03 Inch
  • Agency Approvals: UL and CSA
  • Length: 0.86 Inch
  • CSA File Number: LR22190

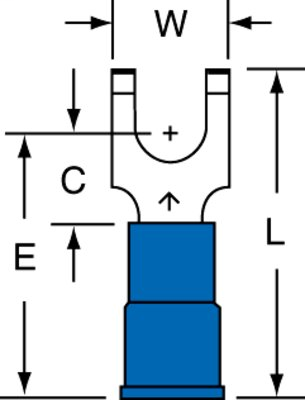

  • Dimension E: 0.71 Inch
  • Insulation Material: Nylon with Insulation Grip
  • Maximum Insulation Outer Diameter: 0.170 Inch
  • UL File Number: E23438
  • Packaging: 100 per bottle
  • Conductor Sizes: 16 - 14 AWG
  • Terminal Type: Fork
  • Terminal Style: Flanged Block
  • Barrel Style: Butted
  • Clearance (C): 0.25 Inch
  • Width: 0.3 Inch

Documents

Overview

UPC 05112858974
Item Long Description Flanged Block Fork Nylon Insulated, 100/bottle, MNG14-10FFBX
GTiN 00051128589748
Type Fork
Material Nylon
Stud Size 10
Family Brand Name 3M
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.86 in
Width 0.3 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Flanged Block
Terminal Type Fork
Conductor Size 16 To 14 AWG
Insulation Material Nylon With Insulation Grip
