3M Industrial Safety MNG14-187DFIX Nylon Insulated 100/Bottle Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
$1.36/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG14-187DFIX
North Coast Part # 673701

Features

  • Blue nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • 3M™ Scotchlok™ Color-Coded Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. This terminal has a butted-seam barrel which is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The nylon-sleeve is abrasion-resistant, fully insulated and flared to allow a positive grip. Its stepped design offers mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Allows for quick and easy disconnect of wires
  • Mates with 0.187-in wide male tab
  • Accommodates wire sizes 16 to 14 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611458698
  • Agency Approvals: UL and CSA
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Color Family: Blue
  • Conductor Size: 16 - 14 AWG
  • Connection Type: Wire
  • Connection Width (Imperial): 0.187 in
  • Connection Width (Metric): 4.75 mm
  • Connector Style: Insulation Displacement
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Flame Retardant: No
  • Insulation Material: Nylon with Insulation Grip
  • Manufacturing Origin: USA
  • Material: ETP Copper
  • Mates with Female Width: 0.187 Inch

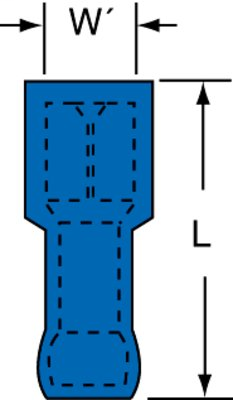

  • Mates with Male Tab Width (W'): 0.187 Inch
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Minimum Order Quantity: 100
  • Minimum Wire Gauge: 16 AWG
  • Overall Diameter (Imperial): 0.23 in
  • Overall Length (Imperial): 0.81 in
  • Overall Length (Metric): 20.57 mm
  • Overall Width (Imperial): 0.3 in
  • Pad Width: 0.187 in
  • Product Color: Blue
  • Tab Width: 0.250
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard

Overview

UPC 05112858724
GTiN 00051128587249
Type Disconnect
Material Nylon
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.81 in
Width 0.3 in
Diameter 0.23 in
Thickness 0.02 in
Barrel Type Butted
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 16 To 14 AWG
Insulation Material Nylon With Insulation Grip
Color Blue
Max Operating Temperature 221 degrees F
Overall Length 0.81 in
