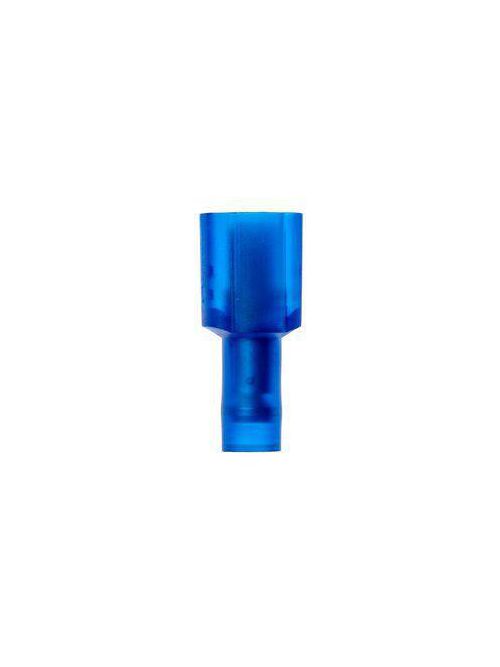

3M MNG14-187DMIX MNG14-187DMIX MALE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.81/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG14-187DMIX
North Coast Part # 673703

Features

  • Blue nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.187-in wide female tab
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating

Specifications

  • Barrel Inside Diameter: 0.145 Inch
  • Barrel Style: Butted
  • Color Family: Blue
  • Conductor Size: 16 - 14 AWG
  • Connection Width (Imperial): 0.187 in
  • Connection Width (Metric): 4.75 mm
  • CSA File Number: LR22190
  • Diameter (D): 0.30 Inch
  • Disconnect Type: Male
  • Fastener Orientation: Male
  • Insulation Color: Blue
  • Insulation Material: Nylon with Insulation Grip

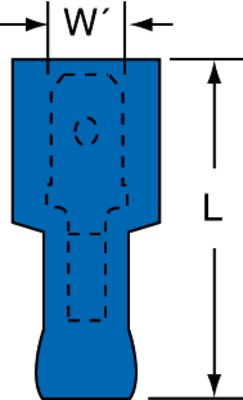

  • Male Tab Width (W'): 0.187 Inch
  • Material: ETP Copper
  • Maximum Conductor Size: 14 AWG
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 100
  • Overall Diameter (Imperial): 0.3 in
  • Overall Length (Imperial): 0.87 in
  • Overall Length (Metric): 22.098 mm
  • Overall Width (Imperial): 0.37 in
  • Overall Width (Metric): 9.4 mm
  • Product Color: Blue
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.250
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard
  • UL File Number: E70512
  • Voltage Application: Low Voltage

Overview

UPC 05112858799
Item Long Description 3M Scotchlok Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587997
Type Disconnect
Material Nylon
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.87 in
Width 0.37 in
Diameter 0.3 in
Thickness 0.02 in
Barrel Type Butted
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 16 To 14 AWG
Insulation Material Nylon With Insulation Grip
Color Blue
Overall Length 0.87 in
