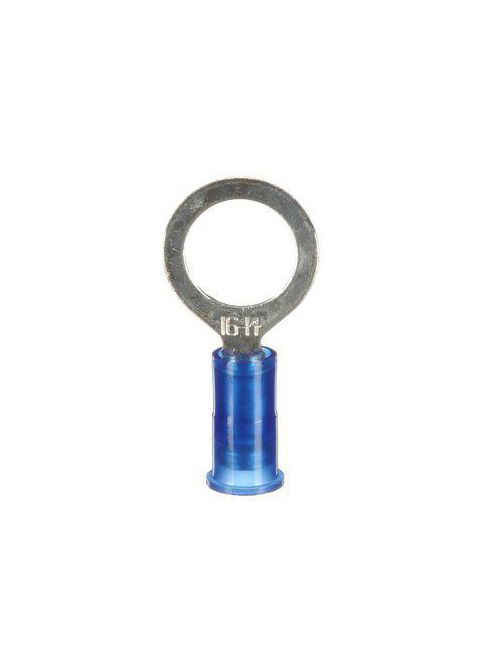

3M MNG14-38RX 100/Bottle Nylon Insulated Ring
Product image thumbnail 0
Product image thumbnail 1
$1.65/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG14-38RX
North Coast Part # 673699

Features

  • Blue nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Standard-style ring tongue fits around the stud
  • Stud size 3/8 in
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611466147
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Color Family: Blue
  • Connection Width (Imperial): 0.375 in
  • Connection Width (Metric): 9.525 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Overall Length (Imperial): 1.14 in
  • Overall Length (Metric): 28.95 mm
  • Overall Width (Imperial): 0.56 in
  • Overall Width (Metric): 14.22 mm
  • Product Color: Blue
  • Terminal Type: Ring

Overview

UPC 05112858968
GTiN 00051128589687
Length 1.14 in
Width 0.56 in
Color Blue
Type Standard
Thickness 0.03 in
Barrel Type Butted
Material Plastic
Stud Size 3/8 in
Terminal Style Standard
Terminal Type Ring
Conductor Size 16-14 AWG
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 16 - 14 AWG
Max Operating Temperature 105 C
Sub Brand Scotchlok
Overall Length 1.14 in
