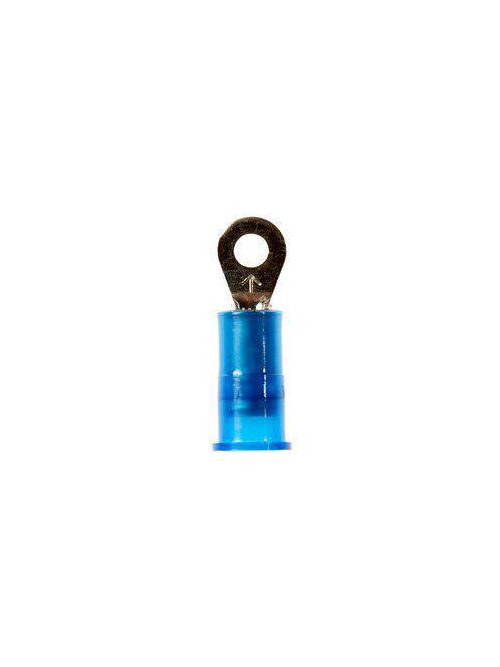

3M Industrial Safety MNG14-4R/SX Nylon Insulated 100/Bottle Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.31/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG14-4R/SX
North Coast Part # 673694

Features

  • Blue nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #4
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Color Family: Blue
  • Connection Width (Imperial): 0.112 in
  • Connection Width (Metric): 2.845 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 14 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 16 AWG
  • Overall Length (Imperial): 0.81 in
  • Overall Length (Metric): 20.57 mm
  • Overall Width (Imperial): 0.25 in
  • Overall Width (Metric): 6.35 mm
  • Product Color: Blue
  • Terminal Type: Ring

Overview

GTiN 00051128589625
Length 0.81 Inch
Width 1/4 in
Type Standard
Thickness 0.03 in
Barrel Type Butted
Material Nylon
Stud Size #4
Terminal Style Standard
Terminal Type Ring
Conductor Size 16-14 AWG
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Product UPC 05112858962
Color Blue
Max Operating Temperature 105 C
Overall Length 0.81 in
