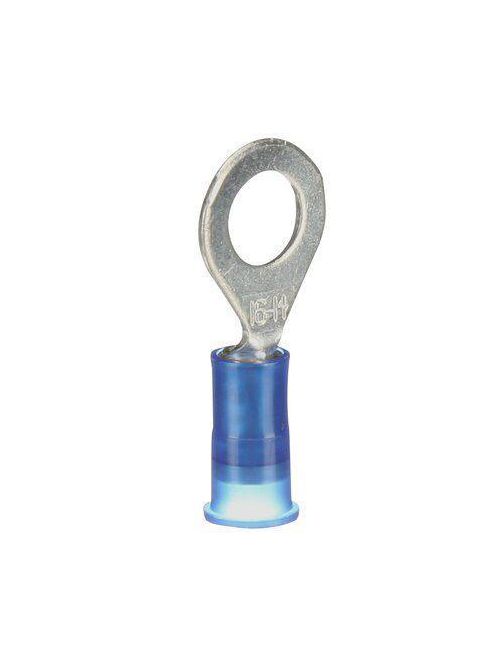

3M MNG14-516R/SX MNG14-516R/SX RING

Features

• Blue nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
• Funnel-designed, seamless brass sleeve offers easy insertion of wires
• Standard-style ring tongue fits around the stud
• Stud size 5/16 in
• Accommodates wire sizes 16 to 14 AWG
• Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• 600V-rated for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
• 100/carton, 500/case

Specifications

• Color Family: Blue
• Connection Width (Imperial): 0.315 in
• Connection Width (Metric): 8 mm
• Disconnect Type: Non Pertinent
• Maximum Conductor Size: 14 AWG
• Maximum Operating Temperature (Celsius): 105 Degree Celsius
• Minimum Conductor Size: 16 AWG
• Overall Length (Imperial): 1.09 in
• Overall Length (Metric): 27.68 mm
• Overall Width (Imperial): 0.47 in
• Overall Width (Metric): 11.93 mm
• Product Color: Blue
• Terminal Type: Ring
