3M MNG14-610RX 100/Bottle Nylon Insulated Ring
$1.44/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG14-610RX
North Coast Part # 673692

Features

  • Blue nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

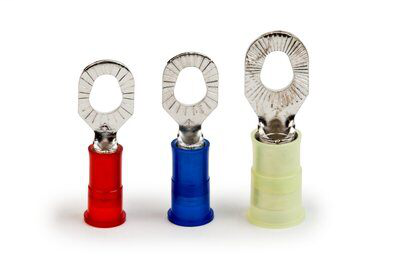

  • 3M™ Scotchlok™ Color-Coded Multi-Stud Ring Tongue Terminal ensures an optimum fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Multi-stud style ring tongue fits around multiple stud sizes
  • 3M™ Scotchlok™ Multi-Stud Ring Tongue Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Stud size #6 to #10
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/bag

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611466261
  • Agency Approvals: UL and CSA
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Clearance (C): 0.31 Inch
  • Color Family: Blue
  • Conductor Size: 16 - 14 AWG
  • Dimension E: 0.77 Inch
  • Insulation Material: Nylon
  • Manufacturing Origin: USA
  • Material: Plastic
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Voltage Rating: 600 to 1000 V
  • Minimum Order Quantity: 100
  • Minimum Stud Diameter (Imperial): 0.138 in
  • Minimum Stud Diameter (Metric): 3.5 mm
  • Minimum Wire Gauge: 16 AWG
  • Operating Temperature Range (Celsius): -40 °C to 105 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 221 °F
  • Overall Length (Imperial): 1.02 in
  • Overall Length (Metric): 25.9 mm
  • Overall Width (Imperial): 0.34 in
  • Overall Width (Metric): 8.63 mm
  • Product Color: Blue
  • Ring Type: Standard
  • Stud Size: #6 to #10
  • Terminal Style: Multi-Stud
  • Terminal Type: Ring
  • Type: Standard

Overview

UPC 05112858980
GTiN 00051128589809
Type Ring
Material Plastic
Stud Size 6 To 10
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 1.02 in
Width 0.34 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Multi-Stud
Terminal Type Ring
Conductor Size 16 To 14 AWG
Insulation Material Nylon With Insulation Grip
Color Blue
Max Operating Temperature 221 degrees F
Overall Length 1.02 in
