3M MNG14-6FB/SX MNG14-6FB/SX BLOCK
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.31/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG14-6FB/SX
North Coast Part # 14633

Specifications

  • Brand: Scotchlok
  • Stud Size: 6
  • Thickness: 0.03 Inch
  • Terminal Style: Block
  • Insulation Material: Nylon with Insulation Grip

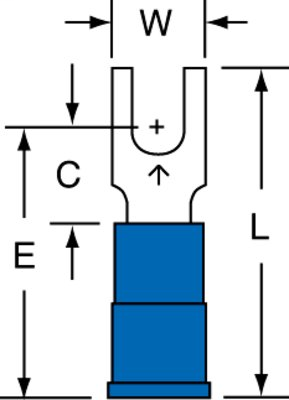

  • Clearance (C): 0.25 Inch
  • CSA File Number: LR22190
  • Width: 0.25 Inch
  • Maximum Insulation Outer Diameter: 0.170 Inch
  • UL File Number: E23438
  • Barrel Style: Butted
  • Packaging: 100 per bottle
  • Length: 0.86 Inch
  • Agency Approvals: UL and CSA
  • Dimension E: 0.71 Inch
  • Terminal Type: Fork
  • Trademark: Scotchlok
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • RoHS 2011/65/EU Compliant: Yes
  • Conductor Sizes: 16 - 14 AWG

Documents

Overview

GTiN 00051128589717
Type Fork
Material Nylon
Stud Size 6
Family Brand Name 3M
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Product UPC 05112858971
Length 0.86 Inch
Width 0.25 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Block
Terminal Type Fork
Conductor Size 16 To 14 AWG
Insulation Material Nylon With Insulation Grip
