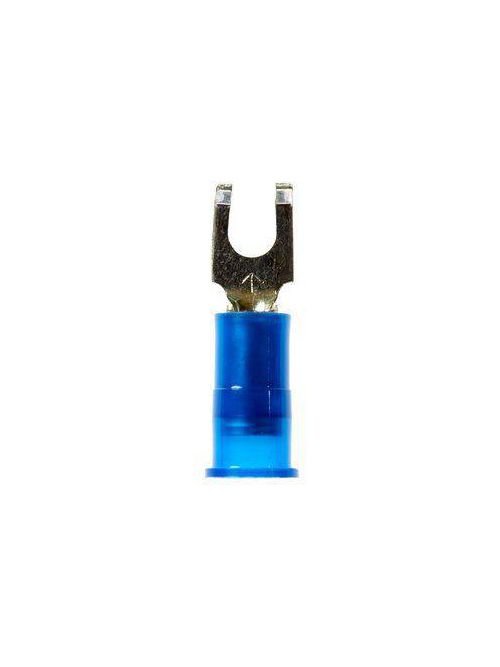

3M MNG14-6FFB/SX 100/Bottle Nylon Insulated Flanged Block Fork
Product image thumbnail 0
Product image thumbnail 1
$1.24/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG14-6FFB/SX
North Coast Part # 673679

Features

  • Blue nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • Stud size #6
  • Accommodates wire sizes 16 to 14 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.090 Inch
  • Barrel Style: Butted
  • Conductor Size: 16 - 14 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.71 Inch
  • Fork Type: Flanged Block
  • Insulation Material: Nylon
  • Maximum Conductor Size: 14 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.17 in
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 100
  • Overall Length (Imperial): 0.86 in
  • Overall Width (Imperial): 0.25 in
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #6
  • Terminal Style: Flanged Block
  • Terminal Type: Fork
  • UL File Number: E23438

Overview

UPC 05112858972
GTiN 00051128589724
Type Fork
Material Nylon
Stud Size 6
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.86 in
Width 0.25 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Flanged Block
Terminal Type Fork
Conductor Size 14 AWG
Insulation Material Nylon,Insulation Grip
Overall Length 0.86 in
