3M MNG14-6FX MNG14-6FX NYLON FORK B
Product image thumbnail 0
Product image thumbnail 1
$1.24/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG14-6FX
North Coast Part # 673677

Features

  • Blue nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Wider-tongue design for use on free-standing studs
  • Stud size #6
  • Accommodates wire sizes 16 to 14 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.070 Inch
  • Barrel Style: Butted
  • Color Family: Blue
  • Conductor Size: 16 - 14 AWG
  • CSA File Number: LR22190

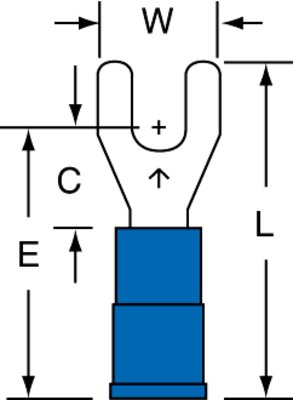

  • Dimension E: 0.75 Inch
  • Fork Type: Standard
  • Insulation Material: Nylon
  • Material: ETP Copper
  • Maximum Conductor Size: 14 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.145 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 100
  • Minimum Wire Gauge: 16 AWG
  • Overall Length (Imperial): 0.91 in
  • Overall Length (Metric): 23.11 mm
  • Overall Width (Imperial): 0.34 in
  • Overall Width (Metric): 8.6 mm
  • Product Color: Blue
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #6
  • Terminal Style: Standard
  • Terminal Type: Fork
  • UL File Number: E23438

Overview

UPC 05112858665
GTiN 00051128586655
Type Fork
Material Nylon
Stud Size 6
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.91 in
Width 0.34 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Fork
Conductor Size 16 To 14 AWG
Insulation Material Nylon With Insulation Grip
Color Blue
Max Operating Temperature 221 degrees F
Overall Length 0.91 in
