3M MNG14-8FFBX MNG14-8FFBX FLANGED
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.27/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG14-8FFBX
North Coast Part # 673678

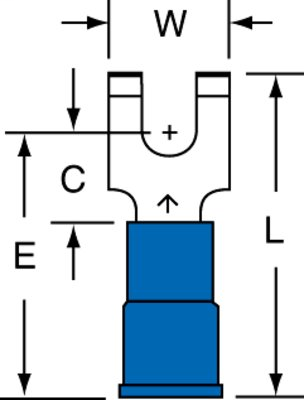

Specifications

  • Thickness: 0.03 Inch
  • Terminal Type: Fork
  • Insulation Material: Nylon with Insulation Grip
  • RoHS 2011/65/EU Compliant: Yes
  • Terminal Style: Flanged Block
  • Packaging: 100 per bottle
  • UL File Number: E23438
  • Agency Approvals: UL and CSA
  • Length: 0.86 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Barrel Style: Butted
  • Width: 0.3 Inch
  • CSA File Number: LR22190
  • Stud Size: 8
  • Maximum Insulation Outer Diameter: 0.170 Inch
  • Clearance (C): 0.25 Inch
  • Trademark: Scotchlok
  • Conductor Sizes: 16 - 14 AWG
  • Brand: Scotchlok
  • Dimension E: 0.71 Inch

Documents

Overview

UPC 05112858973
Item Long Description Flanged Block Fork Nylon Insulated, 100/bottle, MNG14-8FFBX
GTiN 00051128589731
Type Fork
Material Nylon
Stud Size 8
Family Brand Name 3M
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.86 in
Width 0.3 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Flanged Block
Terminal Type Fork
Conductor Size 16 To 14 AWG
Insulation Material Nylon With Insulation Grip
