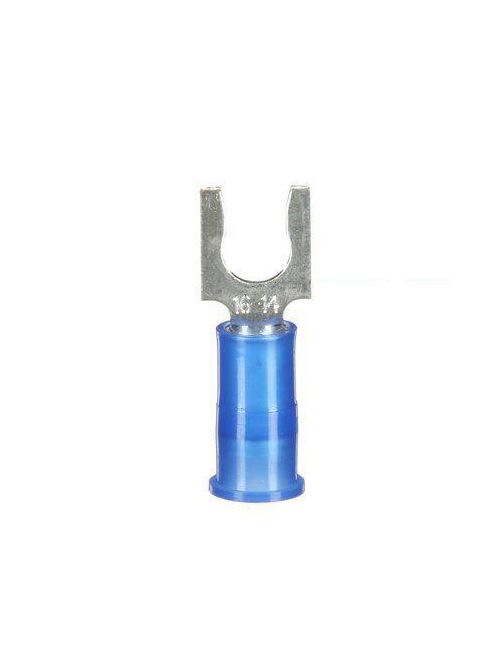

3M Industrial Safety MNG14-8FLX Nylon Insulated 100/Bottle Locking Fork Terminal

Features

• Blue nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
• Funnel-designed, seamless brass sleeve offers easy insertion of wires
• Spring-like tongue firmly fits around the stud
• Stud size #8
• Accommodates wire sizes 16 to 14 AWG
• Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• 600V-rated for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
• 100/carton, 500/case

Specifications

• Barrel Inside Diameter: 0.090 Inch
• Barrel Style: Butted
• Color Family: Blue
• Conductor Size: 16 - 14 AWG
• CSA File Number: LR22190
• Dimension E: 0.71 Inch
• Fork Type: Locking
• Insulation Material: Nylon
• Material: Plastic
• Maximum Conductor Size: 14 AWG
• Maximum Insulation Outer Diameter (Imperial): 0.17 in
• Maximum Insulation Outer Diameter (Metric): 3.7 mm
• Maximum Insulation Outside Diameter: 0.145 in
• Maximum Lock Width: 0.34 Inch
• Maximum Operating Temperature (Celsius): 105 Degree Celsius
• Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
• Maximum Recommended Voltage Rating: 600 V
• Maximum Wire Gauge: 14 AWG
• Minimum Conductor Size: 16 AWG
• Minimum Order Quantity: 100
• Minimum Wire Gauge: 16 AWG
• Overall Length (Imperial): 0.89 in
• Overall Length (Metric): 22.6 mm
• Overall Width (Imperial): 0.3 in
• Overall Width (Metric): 8.12 mm
• Product Color: Blue
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Stud Size: #8
• Terminal Style: Locking
• Terminal Type: Fork
• UL File Number: E23438
