3M MNG14-8FX 100/Bottle Nylon Insulated Ring
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.27/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG14-8FX
North Coast Part # 673676

Features

  • Blue nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Wider-tongue design for use on free-standing studs
  • Stud size #8
  • Accommodates wire sizes 16 to 14 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Specifications

  • Color Family: Blue
  • Fork Type: Standard
  • Insulation Material: Nylon
  • Maximum Conductor Size: 14 AWG
  • Minimum Conductor Size: 16 AWG

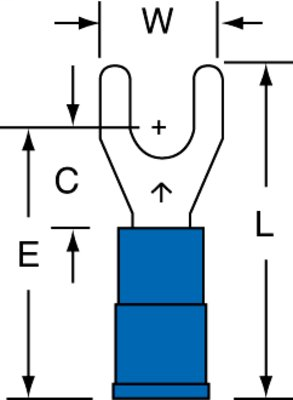

  • Overall Length (Imperial): 0.91 in
  • Overall Length (Metric): 23.114 mm
  • Overall Width (Imperial): 0.34 in
  • Overall Width (Metric): 8.636 mm
  • Product Color: Blue
  • Stud Diameter (Imperial): 0.164 in
  • Stud Diameter (Metric): 4.166 mm

Categories

Overview

UPC 05112858666
Item Long Description 3M Scotchlok Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128586662
Type Fork
Material Nylon
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.91 in
Width 0.34 in
Thickness 0.03 in
Barrel Type Butted
Stud Size 8
Terminal Style Standard
Terminal Type Fork
Conductor Size 16 To 14 AWG
Insulation Material Nylon With Insulation Grip
Color Blue
Overall Length 0.91 in
