Overview

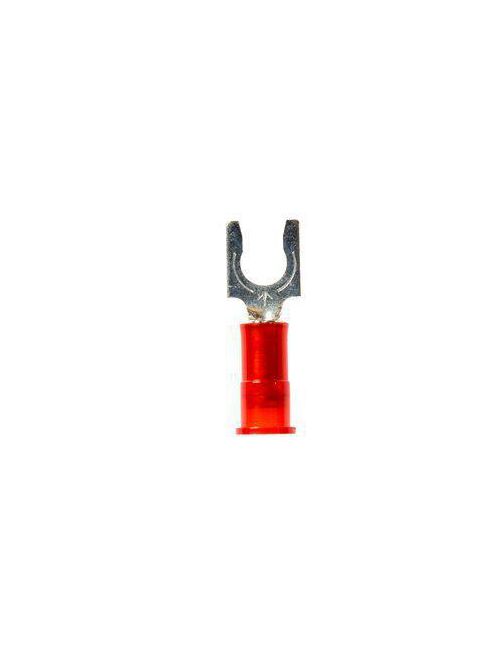

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- Red nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, seamless brass sleeve offers easy insertion of wires
- Spring-like tongue firmly fits around the stud
- Stud size #10
- Accommodates wire sizes 22 to 18 AWG
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- 100/carton, 500/case
Specifications
- 3M ID: 80611464522
- Agency Approvals: UL and CSA
- Barrel Style: Butted
- Brand: Scotchlok
- Clearance (C): 0.25 Inch
- Conductor Size: 22 - 18 AWG
- CSA File Number: LR22190
- Dimension E: 0.69 Inch
- Insulation Material: Nylon with Insulation Grip
- Length: 0.87 Inch
- Maximum Insulation Outer Diameter: 0.145 Inch
- Maximum Lock Width: 0.35 Inch
- National Stock Number: 5940010906344
- Packaging: 100 per bottle
- RoHS 2011/65/EU Compliant: Yes
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Stud Size: #10
- Terminal Style: Locking
- Terminal Type: Fork
- Thickness: 0.03 Inch
- Trademark: Scotchlok
- UL File Number: E23438
- Width: 0.32 Inch
