3M MNG18-187DFIX MNG18-187DFIX FEMA

Features

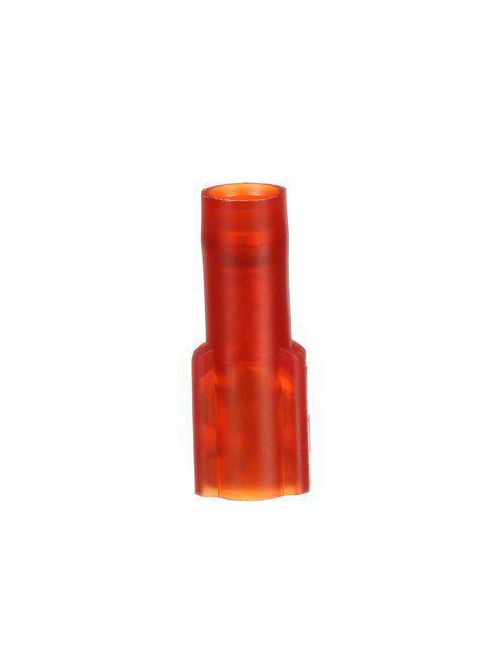

• Red nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
• Dents and rolled edges of this female disconnect terminal offer excellent holding force
• Allows for quick and easy disconnect of wires
• Mates with 0.187-in wide male tab
• Accommodates wire sizes 22 to 18 AWG
• Made of durable brass for good conductivity and has corrosion-resistant tin plating
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• Rated 600V for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
• 100/carton, 500/case

Specifications

• Barrel Inside Diameter: 0.085 Inch
• Barrel Length (Imperial): 0.25 Inch
• Barrel Style: Butted
• Bullet Diameter: 0.180
• Color Family: Red
• Conductor Size: 22 - 18 AWG
• Connection Type: Wire
• Connection Width (Imperial): 0.187 in
• Connection Width (Metric): 4.75 mm
• Connector / Connector Tool: Connector
• Connector Style: Insulation Displacement
• CSA File Number: LR22190
• Diameter (D): 0.23 Inch
• Disconnect Type: Female
• Fastener Orientation: Female
• Flame Retardant: No
• Grease Filling Against Corrosion: No
• Insulation Color: Red
• Insulation Material: Nylon with Insulation Grip
• Interrupt Free Shifting: No

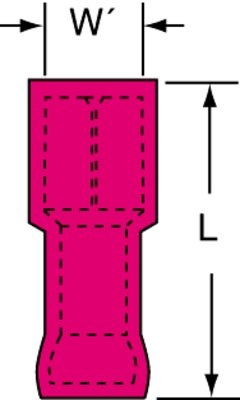

• Male Tab Width (W'): 0.187 Inch
• Material: ETP Copper
• Mates with Female Width: 0.187 Inch
• Mates with Male Tab Width (W'): 0.187 Inch
• Maximum Conductor Size: 18 AWG
• Maximum Insulation Outer Diameter (Imperial): 0.145 in
• Maximum Insulation Outer Diameter (Metric): 3.7 mm
• Maximum Insulation Outside Diameter: 0.145 in
• Maximum Operating Temperature (Celsius): 105 Degree Celsius
• Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
• Maximum Recommended Voltage Rating: 600 V
• Maximum Wire Gauge: 18 AWG
• Minimum Conductor Size: 22 AWG
• Minimum Order Quantity: 100
• Minimum Wire Gauge: 22 AWG
• Overall Diameter (Imperial): 0.23 in
• Overall Length (Imperial): 0.81 in
• Overall Length (Metric): 20.57 mm
• Overall Width (Imperial): 0.3 in
• Product Color: Red
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Terminal Style: Fully Insulated
• Terminal Type: Standard
• UL File Number: E70512
