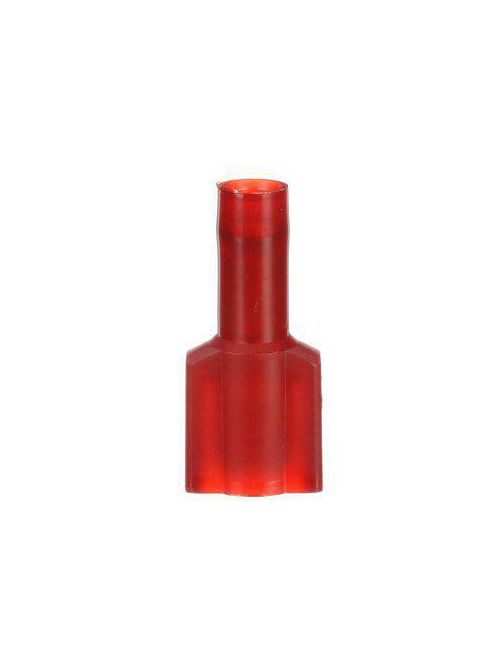

3M MNG18-250DMIX 50/Bottle Nylon Insulated Male Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.39/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG18-250DMIX
North Coast Part # 15523

Features

  • Red nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide female tab
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating

Specifications

  • Barrel Inside Diameter: 0.145 Inch
  • Barrel Style: Butted
  • Bullet Diameter: 0.180
  • Color Family: Red
  • Conductor Size: 22 - 18 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • CSA File Number: LR22190
  • Diameter (D): 0.30 Inch
  • Disconnect Type: Male
  • Fastener Orientation: Male
  • Insulation Color: Red
  • Insulation Material: Nylon with Insulation Grip
  • Male Tab Width (W'): 0.250 Inch
  • Material: Plastic
  • Maximum Conductor Size: 18 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.145 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 18 AWG
  • Minimum Conductor Size: 22 AWG
  • Minimum Order Quantity: 50
  • Minimum Wire Gauge: 22 AWG
  • Overall Diameter (Imperial): 0.3 in
  • Overall Length (Imperial): 0.95 in
  • Overall Length (Metric): 24.13 mm
  • Overall Width (Imperial): 0.44 in
  • Overall Width (Metric): 11.17 mm
  • Product Color: Red
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard
  • UL File Number: E70512
  • Voltage Application: Low Voltage

Overview

UPC 05112858803
Item Long Description 3M Scotchlok Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128588031
Length 0.95 in
Width 0.44 in
Color Red
Type Disconnect
Diameter 0.3 in
Thickness 0.032 in
Barrel Type Butted
Material Plastic
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 18 AWG
Family Brand Name Scotchlok
Insulation Material Insulation Grip,Nylon
Terminal Size 22 - 18 AWG
Max Operating Temperature 221 degrees F
Sub Brand Scotchlok
Overall Length 0.95 in
