3M MNG18-250DMX MNG18-250DMX DISC M

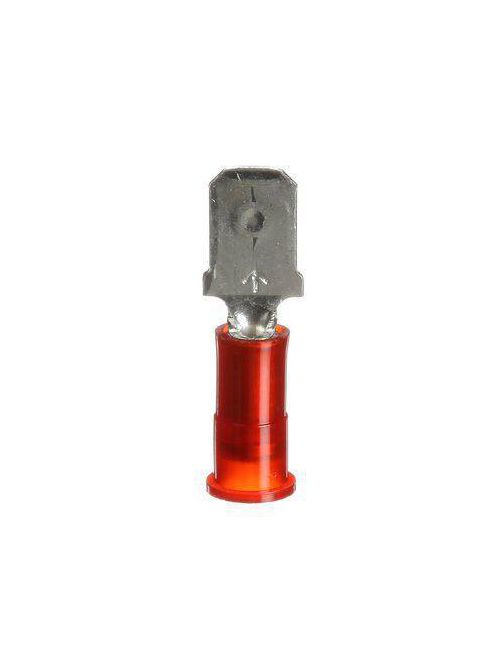

Product image thumbnail 0
Product image thumbnail 1
$1.36/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG18-250DMX
North Coast Part # 673667

Features

  • Red nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide female tab
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.065 Inch
  • Barrel Style: Insulation Grip
  • Color Family: Red
  • Conductor Size: 22 - 18 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • CSA File Number: LR22190
  • Diameter (D): 0.39 Inch
  • Disconnect Type: Male
  • Fastener Orientation: Male
  • Insulation Color: Red
  • Insulation Material: Nylon

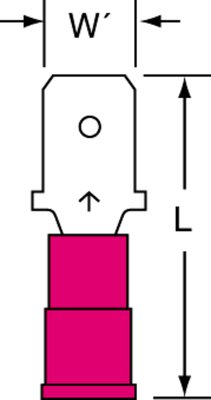

  • Male Tab Width (W'): 0.250 Inch
  • Material: Plastic
  • Maximum Conductor Size: 18 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.145 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 18 AWG
  • Minimum Conductor Size: 22 AWG
  • Minimum Order Quantity: 100
  • Minimum Wire Gauge: 22 AWG
  • Overall Diameter (Imperial): 0.39 in
  • Overall Length (Imperial): 0.92 in
  • Overall Length (Metric): 23.3 mm
  • Product Color: Red
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.250
  • Terminal Style: Standard
  • Terminal Type: Standard
  • UL File Number: E70512
  • Voltage Application: Low Voltage

Overview

UPC 05112858785
GTiN 00051128587850
Length 0.92 in
Type Insulated, Standard
Thickness 0.032 in
Barrel Type Insulation Grip
Material Plastic
Terminal Style Standard
Terminal Type Disconnect
Conductor Size 22-18 AWG
Tab Size 1/4 in
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Color Red
Diameter 0.39 in
Max Operating Temperature 221 degrees F
Overall Length 0.92 in
