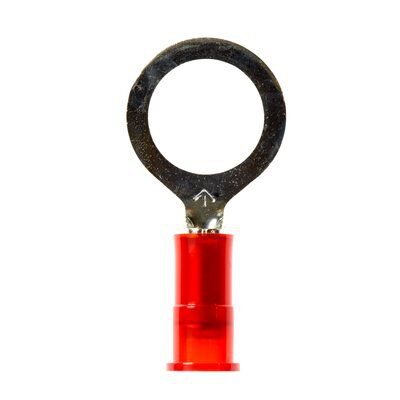

3M MNG18-38RX MNG18-38RX RING NYL B

Features

• Red nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
• Funnel-designed, seamless brass sleeve offers easy insertion of wires
• 3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
• Standard-style ring tongue fits around the stud
• Stud size 3/8 in
• Accommodates wire sizes 22 to 18 AWG
• Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• 600V-rated for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
• 100/carton, 500/case

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80611465925
• Manufacturing Origin: USA
• Brand: Scotchlok™
• Connection Width (Imperial): 0.375 in
• Connection Width (Metric): 9.525 mm
• Overall Length (Imperial): 1.12 in
• Overall Width (Imperial): 0.56 in
• Terminal Type: Ring
