3M MNG18-4FLX Locking Fork Nylon In
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.48/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG18-4FLX
North Coast Part # 673665

Specifications

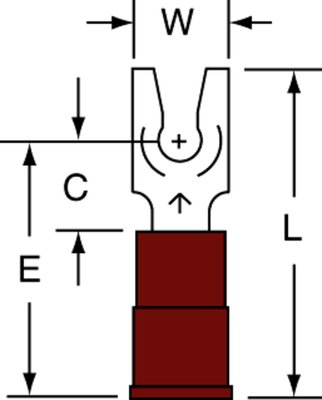

  • Clearance (C): 0.25 Inch
  • UL File Number: E23438
  • Length: 0.87 Inch
  • Packaging: 100 per bottle
  • Agency Approvals: UL and CSA
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Terminal Type: Fork
  • Barrel Style: Butted
  • Dimension E: 0.69 Inch
  • Maximum Lock Width: 0.27 Inch
  • Terminal Style: Locking
  • Conductor Sizes: 22 - 18 AWG
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • Thickness: 0.03 Inch
  • Brand: Scotchlok
  • RoHS 2011/65/EU Compliant: Yes
  • Stud Size: 4
  • Insulation Material: Nylon with Insulation Grip
  • CSA File Number: LR22190
  • Trademark: Scotchlok

Documents

Overview

UPC 05112858810
Item Long Description Locking Fork Nylon Insulated, 100/bottle, MNG18-4FLX
GTiN 00051128588109
Type Fork
Material Nylon
Stud Size 4
Family Brand Name 3M
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.87 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Locking
Terminal Type Fork
Conductor Size 22 To 18 AWG
Insulation Material Nylon With Insulation Grip
