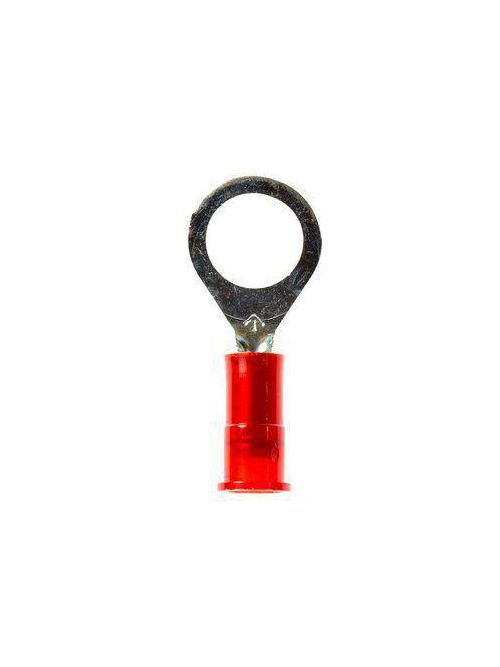

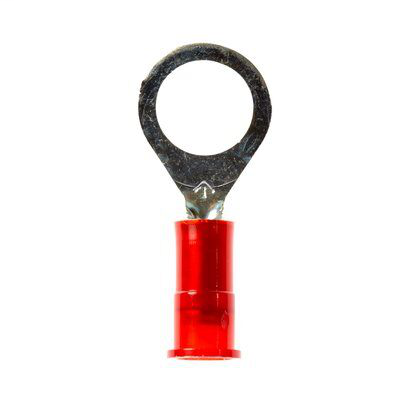

3M MNG18-610RX 100/Bottle Nylon Insulated Ring
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.11/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG18-610RX
North Coast Part # 673663

Features

  • Red nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Multi-stud style ring tongue fits around multiple stud sizes
  • Stud size #6 to #10
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Specifications

  • Color Family: Red
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 18 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 22 AWG
  • Overall Length (Imperial): 1 in
  • Overall Length (Metric): 25.4 mm
  • Overall Width (Imperial): 0.34 in
  • Overall Width (Metric): 8.63 mm
  • Product Color: Red
  • Terminal Type: Ring

Overview

UPC 05112858958
Item Long Description 3M Scotchlok Color-Coded Multi-Stud Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128589588
Type Ring
Material Nylon
Stud Size 6 To 10
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 1 in
Width 0.34 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Multi-Stud
Terminal Type Ring
Conductor Size 22 To 18 AWG
Insulation Material Nylon With Insulation Grip
Color Red
Max Operating Temperature 105 C
Overall Length 1 in
