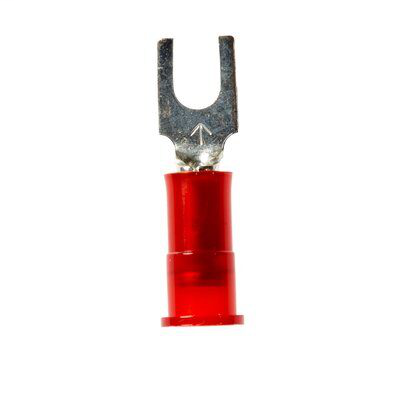

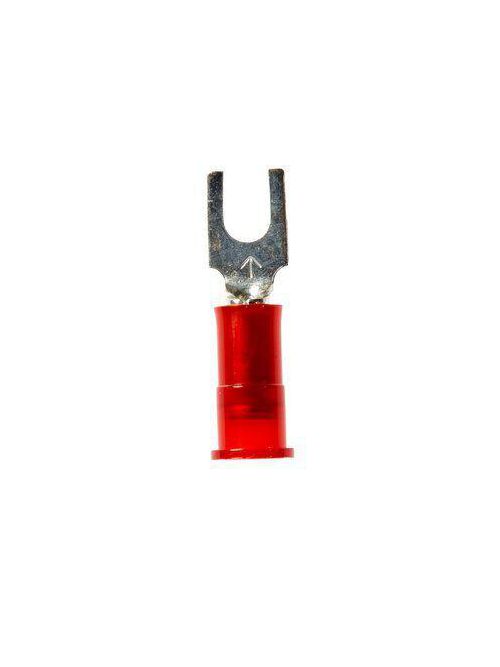

3M MNG18-6FB/SX MNG18-6FB/SX BLOCK
$1.52/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG18-6FB/SX
North Coast Part # 673660

Features

  • Red nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ Color-Coded Small Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • 3M™ Scotchlok™ Small Block Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Stud size #6
  • Accommodates wire sizes 22 to 18 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611465974
  • Agency Approvals: UL and CSA
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Clearance (C): 0.25 Inch
  • Color Family: Red
  • Conductor Size: 22 - 18 AWG
  • Dimension E: 0.69 Inch
  • Fork Type: Block
  • Insulation Material: Nylon
  • Manufacturing Origin: USA
  • Material: Plastic
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Minimum Order Quantity: 100
  • Minimum Wire Gauge: 22 AWG
  • Overall Length (Imperial): 0.84 in
  • Overall Length (Metric): 21.336 mm
  • Overall Width (Imperial): 0.25 in
  • Overall Width (Metric): 6.35 mm
  • Product Color: Red
  • Stud Size: #6
  • Terminal Style: Block
  • Terminal Type: Fork

Overview

UPC 05112858951
GTiN 00051128589519
Type Fork
Material Plastic
Stud Size 6
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.84 in
Width 0.25 in
Color Red
Thickness 0.03 in
Barrel Type Butted
Terminal Style Block
Terminal Type Fork
Conductor Size 22-18 AWG
Insulation Material Insulation Grip,Nylon
Max Operating Temperature 221 degrees F
Overall Length 0.84 in
