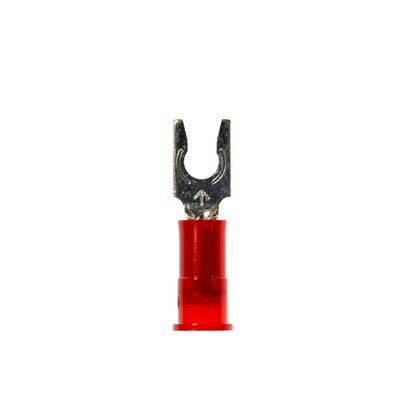

3M Industrial Safety MNG18-6FLX Nylon Insulated 100/Bottle Locking Fork Terminal
$1.56/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG18-6FLX
North Coast Part # 673658

Features

  • Red nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 3M™ Scotchlok™ Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Spring-like tongue firmly fits around the stud
  • Stud size #6
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611464506
  • Agency Approvals: UL and CSA
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Clearance (C): 0.25 Inch
  • Color Family: Red
  • Conductor Size: 22 - 18 AWG
  • Dimension E: 0.69 Inch
  • Fork Type: Locking
  • Insulation Material: Nylon
  • Manufacturing Origin: USA
  • Maximum Lock Width: 0.27 Inch
  • Minimum Order Quantity: 100
  • National Stock Number: 5940010782935
  • Overall Length (Imperial): 0.87 in
  • Overall Length (Metric): 22.098 mm
  • Overall Width (Imperial): 0.25 in
  • Overall Width (Metric): 6.35 mm
  • Product Color: Red
  • Stud Diameter (Imperial): 0.138 in
  • Stud Diameter (Metric): 3.505 mm
  • Stud Size: #6
  • Terminal Style: Locking
  • Terminal Type: Fork

Overview

UPC 05112858804
GTiN 00051128588048
Type Fork
Material Nylon
Stud Size 6
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.87 in
Width 0.25 in
Color Red
Thickness 0.03 in
Barrel Type Butted
Terminal Style Locking
Terminal Type Fork
Conductor Size 18 AWG
Insulation Material Nylon,Insulation Grip
Overall Length 0.87 in
