3M MNGI10-250DFX MNGI10-250DFX FEMA
$2.09/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNGI10-250DFX
North Coast Part # 673657

Overview

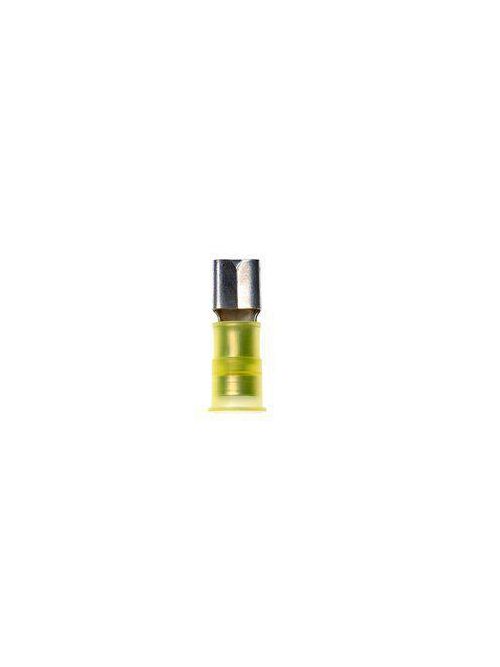

3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a nylon-insulated, butted seam with an interlocking barrel. It withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Standard Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. The butted seam has an interlocking barrel and is covered by a funnel-designed, seamless brass sleeve which serves to guide the wire into position. Its abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and its stepped design offers mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Yellow nylon-insulated, butted seam with an interlocking barrel and funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 12 to 10 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • 3M ID: 80611465719
  • Agency Approvals: UL and CSA
  • Barrel Length: 0.25 Inch
  • Barrel Style: Interlocking Barrel
  • Brand: Scotchlok™
  • Color: Yellow
  • Conductor Size: 12 - 10 AWG
  • Conductor Sizes: 12 - 10 AWG
  • Connection Type: Wire
  • Connector Style: Insulation Displacement
  • CSA File Number: LR22190
  • Diameter: 0.23 Inch
  • Diameter (Metric): 5.8
  • Fastener Orientation: Female
  • Flame Retardant: No
  • Insulation Material: Nylon with Insulation Grip
  • Length: 0.94 Inch
  • Length (Metric): 23.87 mm
  • Material: ETP Copper

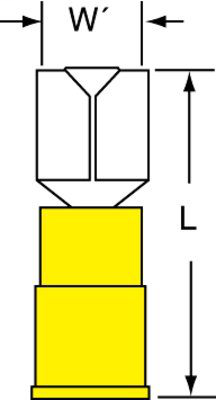

  • Mates with Male Tab Width (W'): 0.25 Inch
  • Maximum Insulation Outer Diameter: 0.250 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 12 AWG
  • Packaging: 50 per bottle
  • Pad Width: 0.25 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Terminal Style: Standard
  • Terminal Type: Disconnect
  • Thickness: 0.032 Inch
  • Thickness (Metric): 0.81 mm
  • Trademark: Scotchlok
  • UL File Number: E70512
  • Width: 0.37 Inch
  • Width (Metric): 9.4

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858925
GTiN 00051128589250
Length 0.94 in
Width 0.37 in
Color Yellow
Type Standard
Diameter 0.23 in
Thickness 0.032 in
Barrel Type Interlocking Barrel
Material Brass
Terminal Style Standard
Terminal Type Disconnect
Conductor Size 12-10 AWG
Connection Type Wire
Tab Size 6.3 x 0.8 mm
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 12 - 10 AWG
Max Operating Temperature 221 degrees F
Barrel Length 0.25 in
Sub Brand Scotchlok
