3M MNGI14-250DFIX MNGI14-250DFIX FM
Product image thumbnail 0
Product image thumbnail 1
$1.36/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNGI14-250DFIX
North Coast Part # 673652

Features

  • Blue nylon-insulated, butted seam with an interlocking barrel and funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 16 to 14 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.080 Inch
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Interlocking Barrel
  • Conductor Size: 16 - 14 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • CSA File Number: LR22190
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Insulation Material: Nylon with Insulation Grip
  • Male Tab Width (W'): 0.250 Inch
  • Maximum Conductor Size: 14 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.145 in
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 100

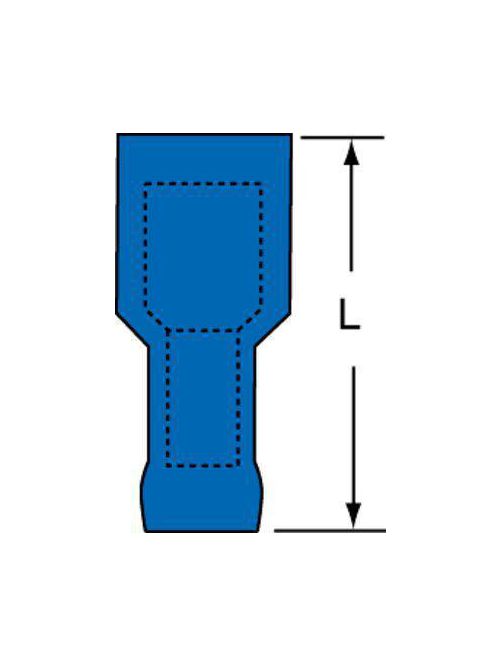

  • Overall Length (Imperial): 0.83 in
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.187
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard
  • UL File Number: E70512

Overview

UPC 05112858922
GTiN 00051128589229
Type Disconnect
Material Nylon
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.83 in
Thickness 0.032 in
Barrel Type Interlocking Barrel
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 14 AWG
Insulation Material Nylon,Insulation Grip
Barrel Length 0.25 in
Overall Length 0.83 in
