3M MNGI18-250DFIX MNGI18-250DFIX FM
$1.64/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNGI18-250DFIX
North Coast Part # 673650

Features

  • Red nylon-insulated, butted seam with an interlocking barrel and funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force

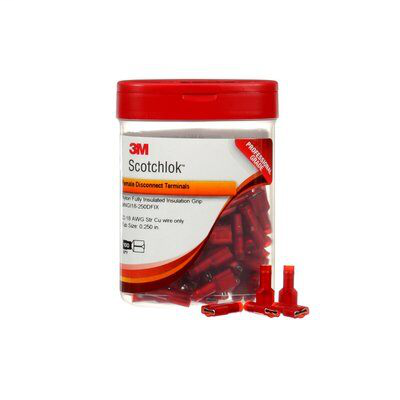

  • 3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a fully insulated, nylon, butted seam with an interlocking barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
  • Allows for quick and easy disconnect of wires
  • 3M™ Scotchlok™ Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. The butted seam has an interlocking barrel and is covered by a funnel-designed, seamless brass sleeve which serves to guide the wire into position. Its abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and its stepped design offers mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 22 to 18 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611465701
  • Agency Approvals: UL and CSA
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Interlocking Barrel
  • Brand: Scotchlok™
  • Conductor Size: 22 - 18 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Insulation Material: Nylon with Insulation Grip
  • Male Tab Width (W'): 0.250 Inch
  • Manufacturing Origin: USA
  • Minimum Order Quantity: 100
  • Overall Length (Imperial): 0.83 in
  • Pad Width: 0.25 in
  • Tab Width: 0.250
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard

Overview

UPC 05112858924
GTiN 00051128589243
Type Disconnect
Material Nylon
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.83 in
Thickness 0.032 in
Barrel Type Interlocking Barrel
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 22 To 18 AWG
Insulation Material Nylon With Insulation Grip
Barrel Length 0.250 in
Overall Length 0.83 in
