3M MNHU10-250DFIX MNHU10-250DFIX FE
$2.86/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNHU10-250DFIX
North Coast Part # 673651

Features

  • Butted-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • 3M™ Scotchlok™ Color-Coded Heat Shrink Female Disconnect Terminal has dents and rolled edges for easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C) and its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
  • 3M™ Scotchlok™ Color-Coded Heat Shrink Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. This versatile terminal has a butted-seam barrel that is covered by a see-through, pre-insulated transparent tubing. The tubing provides seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt when crimped and shrunk
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 12 to 10 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/carton, 125/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611465412
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Color Family: Yellow
  • Conductor Size: 12 - 10 AWG
  • Connection Type: Wire
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Connector Style: Insulation Displacement
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Flame Retardant: No
  • Insulation Material: Heat Shrink
  • Male Tab Width (W'): 0.250 Inch
  • Manufacturing Origin: USA
  • Material: ETP Copper
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Order Quantity: 25
  • Minimum Wire Gauge: 12 AWG
  • Overall Diameter (Imperial): 0.32 in

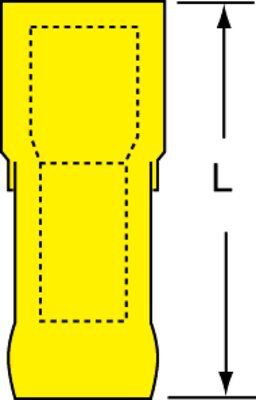

  • Overall Length (Imperial): 1.2 in
  • Overall Length (Metric): 30.48 mm
  • Overall Width (Imperial): 0.39 in
  • Overall Width (Metric): 9.4 mm
  • Pad Width: 0.25 in
  • Product Color: Yellow
  • Tab Width: 0.250
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard

Overview

UPC 05112858895
GTiN 00051128588956
Length 1.2 in
Width 0.39 in
Color Yellow
Type Heat Shrink
Diameter 0.32 in
Thickness 0.032 in
Barrel Type Butted
Material ETP Copper
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 12-10 AWG
Connection Type Wire
Tab Size 1/4 in
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 12 - 10 AWG
Max Operating Temperature 221 degrees F
Barrel Length 0.25 in
Sub Brand Scotchlok
Overall Length 1.2 in
