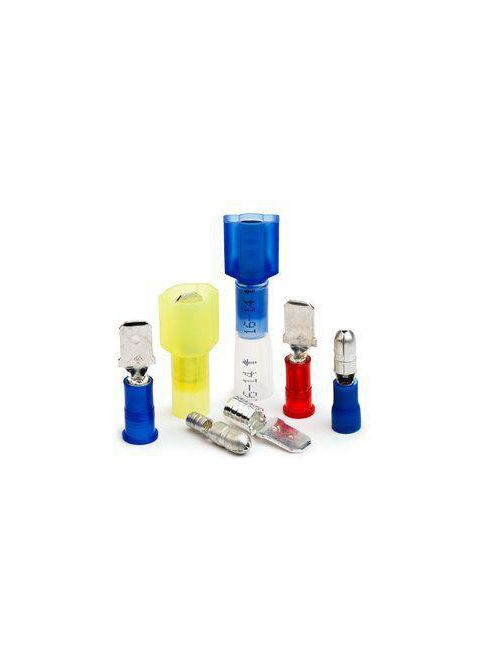

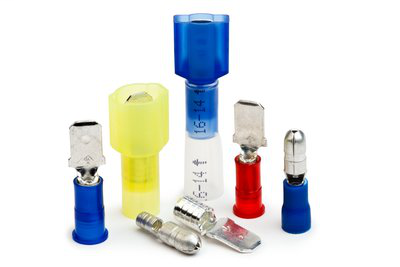

3M MNHU14-250DMIX 25/Bottle Heatshrink Nylon Insulated Male Disconnect
Product image thumbnail 0
Product image thumbnail 1
$1.72/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNHU14-250DMIX
North Coast Part # 673646

Features

  • Butted-seam terminal uses blue pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • 3M™ Scotchlok™ Color-Coded Heat Shrink Male Disconnect Terminal allows for quick and easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • This male disconnect terminal offers excellent holding force
  • 3M™ Scotchlok™ Color-Coded Heat Shrink Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. This versatile terminal has a butted-seam barrel that is covered by a see-through, pre-insulated transparent tubing. The tubing provides seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt when crimped and shrunk
  • Mates with 0.25-in wide female tab
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/carton, 125/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611465545
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Color Family: Blue
  • Conductor Size: 16 - 14 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Male
  • Fastener Orientation: Male
  • Insulation Material: Heat Shrink
  • Male Tab Width (W'): 0.250 Inch
  • Manufacturing Origin: USA
  • Material: Plastic
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Order Quantity: 25
  • Minimum Wire Gauge: 16 AWG
  • Overall Diameter (Imperial): 0.3 in
  • Overall Length (Imperial): 1.2 in
  • Overall Length (Metric): 30.48 mm
  • Overall Width (Imperial): 0.44 in
  • Overall Width (Metric): 11.17 mm
  • Pad Width: 0.25 in
  • Product Color: Blue
  • Tab Width: 0.250
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard
  • Voltage Application: Low Voltage

Overview

UPC 05112858908
GTiN 00051128589083
Length 1.2 in
Width 0.44 in
Color Blue
Type Heat Shrink
Diameter 0.3 in
Thickness 0.032 in
Barrel Type Butted
Material Plastic
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 16-14 AWG
Tab Size 1/4 in
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 16 - 14 AWG
Max Operating Temperature 221 degrees F
Sub Brand Scotchlok
Overall Length 1.2 in
