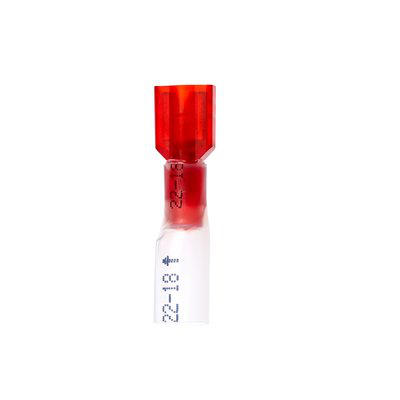

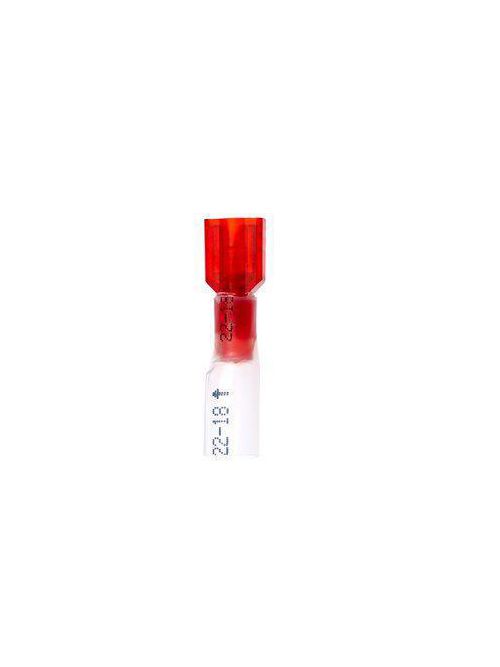

3M MNHU18-250DFIX 25/Bottle Heatshrink Nylon Insulated Female Disconnect
$2.64/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNHU18-250DFIX
North Coast Part # 157671

Overview

3M™ Scotchlok™ Color-Coded Heat Shrink Female Disconnect Terminal has dents and rolled edges for easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C) and its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Color-Coded Heat Shrink Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. This versatile terminal has a butted-seam barrel that is covered by a see-through, pre-insulated transparent tubing. The tubing provides seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Butted-seam terminal uses red pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt when crimped and shrunk
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 22 to 18 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/carton, 125/case

Specifications

  • 3M ID: 80611465628
  • Barrel Style: Butted
  • Brand: Scotchlok
  • Conductor Size: 22 - 18 AWG
  • Diameter: 0.23 Inch
  • Fastener Orientation: Female
  • Insulation Material: Heat Shrink
  • Length: 1.2 Inch
  • Male Tab Width (W'): 0.250 Inch
  • Packaging: 25 per bottle
  • Pad Width: 0.25 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Terminal Style: Fully Insulated
  • Terminal Type: Disconnect
  • Thickness: 0.032 Inch
  • Trademark: Scotchlok
  • Width: 0.37 Inch

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858916
GTiN 00051128589168
Length 1.2 in
Width 0.37 in
Type Disconnect
Diameter 0.23 in
Thickness 0.032 in
Barrel Type Butted
Material Heat Shrink
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 18 AWG
Family Brand Name 3M
Insulation Material Heat Shrink
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
