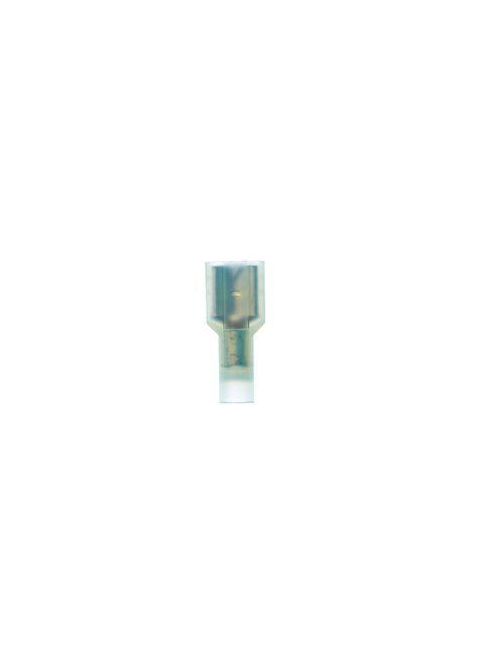

3M MNI14-250DFIX 100/Bottle Nylon Insulated Female Disconnect

Features

• Blue nylon-insulated, butted seam with an interlocking barrel offers easy insertion of wires
• Dents and rolled edges of this female disconnect terminal offer excellent holding force
• Allows for quick and easy disconnect of wires
• Mates with 0.25-in wide male tab
• Accommodates wire sizes 16 to 14 AWG
• Made of durable brass for good conductivity and has corrosion-resistant tin plating
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• Rated 600V for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
• 100/carton, 500/case

Specifications

• Barrel Inside Diameter: 0.076 Inch
• Barrel Length (Imperial): 0.25 Inch
• Barrel Style: Interlocking Barrel
• Conductor Size: 16 - 14 AWG
• Connection Width (Imperial): 0.25 in
• Connection Width (Metric): 6.35 mm
• CSA File Number: LR22190
• Disconnect Type: Female
• Fastener Orientation: Female
• Fork Type: Standard Fork
• Insulation Material: Nylon
• Male Tab Width (W'): 0.250 Inch
• Maximum Conductor Size: 14 AWG
• Maximum Insulation Outer Diameter (Imperial): 0.145 in
• Minimum Conductor Size: 16 AWG
• Minimum Order Quantity: 100
• Overall Length (Imperial): 0.91 in
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Terminal Style: Fully Insulated
• Terminal Type: Standard
• UL File Number: E70512
