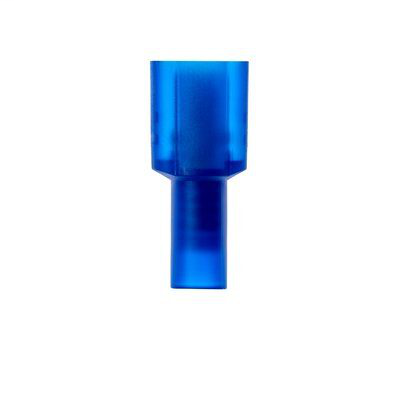

3M Industrial Safety MNU14-187DMIX Nylon Insulated 100/Bottle Male Disconnect
$1.26/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNU14-187DMIX
North Coast Part # 673643

Features

  • Blue nylon-insulated, butted-seam barrel offers easy insertion of wires
  • 3M™ Scotchlok™ Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • 3M™ Scotchlok™ Color-Coded Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. The butted-seam barrel of this terminal provides electrical contact after crimping. The nylon-sleeve is abrasion-resistant, flared and offers a positive grip. Its stepped design ensures mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Mates with 0.187-in wide female tab
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611464324
  • Agency Approvals: UL and CSA
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Color Family: Blue
  • Conductor Size: 16 - 14 AWG
  • Connection Width (Imperial): 0.187 in
  • Connection Width (Metric): 4.75 mm
  • Disconnect Type: Male
  • Fastener Orientation: Male
  • Insulation Material: Nylon
  • Male Tab Width (W'): 0.187 Inch
  • Manufacturing Origin: USA
  • Material: Plastic
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Minimum Order Quantity: 100
  • Minimum Wire Gauge: 16 AWG
  • Overall Diameter (Imperial): 0.3 in
  • Overall Length (Imperial): 0.87 in
  • Overall Length (Metric): 22 mm
  • Overall Width (Imperial): 0.37 in
  • Overall Width (Metric): 9.39 mm
  • Pad Width: 0.187 in
  • Product Color: Blue
  • Tab Width: 0.250
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard
  • Voltage Application: Low Voltage

Overview

UPC 05112858786
GTiN 00051128587867
Length 0.87 in
Width 0.37 in
Color Blue
Type Disconnect
Diameter 0.3 in
Thickness 0.02 in
Barrel Type Butted
Material Plastic
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 16-14 AWG
Family Brand Name Scotchlok
Insulation Material Nylon
Terminal Size 16 - 14 AWG
Max Operating Temperature 221 degrees F
Sub Brand Scotchlok
Overall Length 0.87 in
