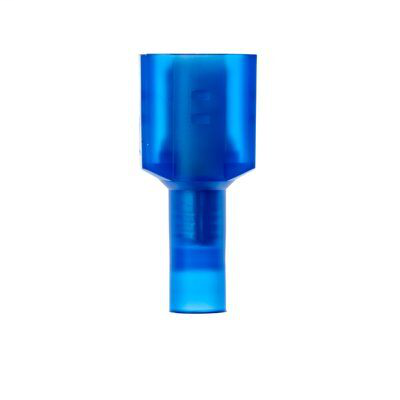

3M MNU14-250DMIX 50/Bottle Nylon Insulated Male Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.42/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNU14-250DMIX
North Coast Part # 672171

Features

  • Blue nylon-insulated, butted-seam barrel offers easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide female tab
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.085 Inch
  • Barrel Style: Butted
  • Color Family: Blue
  • Conductor Size: 16 - 14 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • CSA File Number: LR22190
  • Diameter (D): 0.30 Inch
  • Disconnect Type: Male
  • Fastener Orientation: Male
  • Insulation Color: Blue
  • Insulation Material: Nylon
  • Male Tab Width (W'): 0.250 Inch
  • Material: Plastic
  • Maximum Conductor Size: 14 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.17 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 50
  • Minimum Wire Gauge: 16 AWG
  • Operating Temperature Range (Celsius): -40 °C to 105 °C
  • Overall Diameter (Imperial): 0.3 in
  • Overall Diameter (Metric): 9.9 mm
  • Overall Length (Imperial): 0.95 in
  • Overall Length (Metric): 24.13 mm
  • Overall Width (Imperial): 0.44 in
  • Overall Width (Metric): 11.17 mm
  • Product Color: Blue
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.187
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard
  • UL File Number: E70512
  • Voltage Application: Low Voltage

Overview

GTiN 00051128587799
Length 0.95 Inch
Finish Tin Plated
Width 0.44 in
Color Blue
Type Disconnect
Diameter 0.3 in
Thickness 0.032 in
Barrel Type Butted
Material Plastic
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 16-14 AWG
Applications For Wire Termination
Tab Size 0.032 x 1/4 in
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 16 - 14 AWG
Max Operating Temperature 221 degrees F
Sub Brand Scotchlok
Product UPC 05112858779
Voltage 600 Volt
Overall Length 0.95 in
