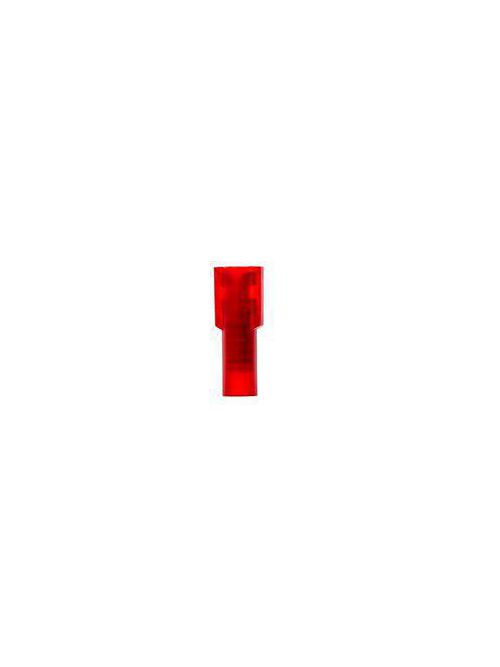

3M Industrial Safety MNU18-187DFIX Nylon Insulated 100/Bottle Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
$1.05/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNU18-187DFIX
North Coast Part # 218296

Features

  • Red nylon-insulated, butted-seam barrel offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.187-in wide male tab
  • Accommodates wire sizes 22 to 18 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.085 Inch
  • Barrel Style: Butted
  • Conductor Size: 22 - 18 AWG
  • Connection Width (Imperial): 0.187 in
  • Connection Width (Metric): 4.75 mm
  • CSA File Number: LR22190
  • Diameter (D): 0.23 Inch
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Insulation Material: Nylon
  • Mates with Female Width: 0.187 Inch
  • Mates with Male Tab Width (W'): 0.187 Inch
  • Maximum Conductor Size: 18 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.145 in
  • Minimum Conductor Size: 22 AWG
  • Minimum Order Quantity: 100
  • Overall Diameter (Imperial): 0.23 in
  • Overall Length (Imperial): 0.81 in
  • Overall Width (Imperial): 0.3 in
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.250
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard
  • UL File Number: E70512

Overview

UPC 05112858783
GTiN 00051128587836
Length 0.81 in
Width 0.3 in
Type Disconnect
Diameter 0.23 in
Thickness 0.02 in
Barrel Type Butted
Material Nylon
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 22 To 18 AWG
Family Brand Name Scotchlok
Insulation Material Nylon
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Overall Length 0.81 in
