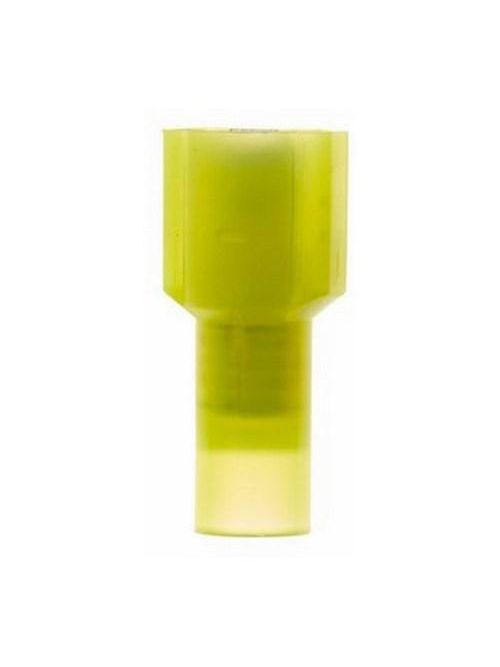

3M MTI10-250Q Highland 25/Bag Fully Nylon Insulated Male Disconnect
Product image thumbnail 0
Product image thumbnail 1
$11.12/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MTI10-250Q
North Coast Part # 1168643

Features

  • Yellow nylon-insulated, butted-seam barrel offers allows for insertion of wires
  • This male disconnect terminal offers excellent holding force
  • 3M™ Highland™ Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel. It withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Allows for quick and easy disconnect of wires
  • 3M™ Highland™ Color-Coded Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. The butted-seam barrel of this terminal provides electrical contact after crimping. The flared nylon sleeve is abrasion-resistant and fully insulated with a stepped design to ensure mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Mates with 0.25-in wide female tab
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/bag

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611602832
  • Agency Approvals: UL and CSA
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Length (Metric): 6.35 mm
  • Barrel Style: Butted
  • Brand: Highland™
  • Conductor Size: 12 - 10 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Male
  • Fastener Orientation: Male
  • Insulation Material: Nylon
  • Manufacturing Origin: USA
  • Material: Plastic
  • Mates with Female Width: 0.25 Inch
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Voltage Rating: 600 to 1000 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 12 AWG
  • Overall Diameter (Imperial): 0.39 in
  • Overall Diameter (Metric): 9.9 mm || 9.9 mm
  • Overall Length (Imperial): 1.05 in
  • Overall Length (Metric): 26.67 mm
  • Overall Width (Imperial): 0.47 in
  • Overall Width (Metric): 11.938 mm
  • Pad Width: 0.25 in
  • Solution for: Wireless Network: Infrastructure Accessories
  • Tab Width: 0.250
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard

Overview

UPC 05112860022
GTiN 00051128600221
Family Brand Name Highland
Length 1.05 in
Width 0.47 in
Diameter 0.39 in
Thickness 0.032 in
Barrel Type Butted
Material Plastic
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 12-10 AWG
Insulation Material Nylon
Barrel Length 0.25 in
Overall Length 1.05 in
