3M MTI18-250Q Highland 25/Bag Nylon Fully Insulated Male Disconnect
$8.89/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MTI18-250Q
North Coast Part # 1168648

Overview

3M™ Highland™ Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel. It withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Highland™ Color-Coded Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. The butted-seam barrel of this terminal provides electrical contact after crimping. The flared nylon-sleeve is abrasion-resistant and fully insulated with a stepped design to ensure mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Red nylon-insulated, butted-seam barrel allows for easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide female tab
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/bag

Specifications

  • 3M ID: 80611602873
  • Agency Approvals: UL and CSA
  • Barrel Length: 0.25 Inch
  • Barrel Length (metric): 6.35 mm
  • Barrel Style: Butted
  • Brand: Highland
  • Conductor Size: 22 - 18 AWG
  • Conductor Sizes: 22 - 18 AWG
  • CSA File Number: LR22190
  • Diameter: 0.3 Inch
  • Diameter (Metric): 7.62 mm
  • Fastener Orientation: Male
  • Insulation Material: Nylon
  • Length: 0.95 Inch
  • Length (Metric): 24.13 mm
  • Material: Material, Plastic

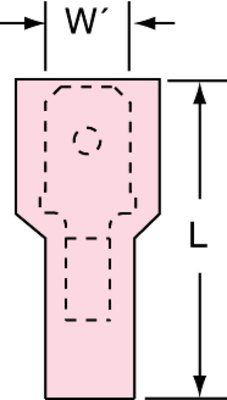

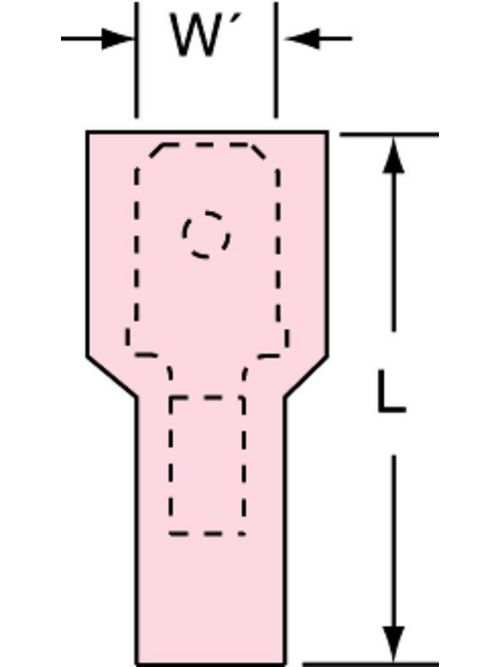

  • Mates with Male Tab Width (W'): 0.25 Inch
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 18 AWG
  • Minimum Wire Gauge: 22 AWG
  • Packaging: 25 per bag
  • Pad Width: 0.25 Inch
  • RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Solution for: Wireless Network: Infrastructure Accessories
  • Terminal Style: Fully Insulated
  • Terminal Type: Disconnect
  • Thickness: 0.032 Inch
  • Thickness (Metric): 0.81 mm
  • Trademark: Highland
  • UL File Number: E70512
  • Units per bag: 25
  • Width: 0.44 Inch
  • Width (Metric): 11.176 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112860026
GTiN 00051128600269
Color Red
Type Male Disconnect Terminal
Material Material,Plastic
Wire Size 22-18 AWG
Family Brand Name 3M
Terminal Size .250
Sub Brand Highland
Length 0.95 in
Width 0.44 in
Diameter 0.3 in
Thickness 0.032 in
Barrel Type Butted
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 22-18 AWG
Insulation Material Nylon
Barrel Length 0.25 in
