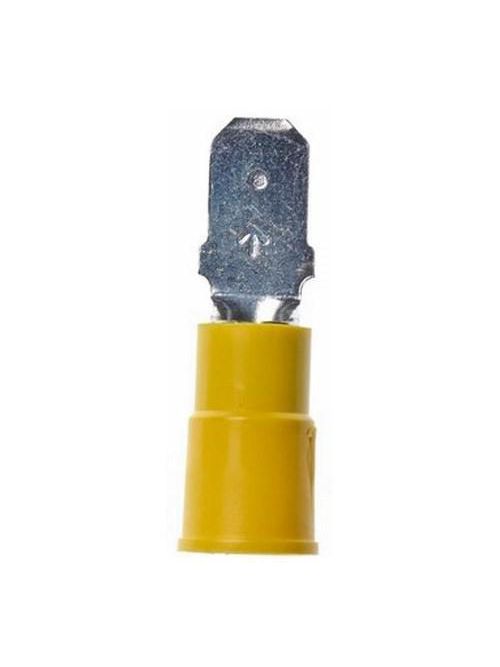

3M MTV10-250Q Highland 25/Bag Vinyl Insulated Male Disconnect

Features

• Yellow vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve allows for easy insertion of wires
• This male disconnect terminal offers excellent holding force
• 3M™ Highland™ Color-Coded Standard Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
• Allows for quick and easy disconnect of wires
• 3M™ Highland™ Color-Coded Standard Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve which serves to guide the wire into position. The polyvinyl chloride sleeve provides electrical contacts and mechanical stress relief at the point of insulation. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
• Mates with 0.25-in wide female tab
• Accommodates wire sizes 12 to 10 AWG
• Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• Rated 600V for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
• 25/bag

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80611602881
• Agency Approvals: UL and CSA
• Barrel Length (Imperial): 0.25 Inch
• Barrel Style: Butted
• Brand: Highland™
• Conductor Size: 12 - 10 AWG
• Connection Width (Imperial): 0.25 in
• Connection Width (Metric): 6.35 mm
• Disconnect Type: Male
• Fastener Orientation: Male
• Insulation Material: Vinyl
• Manufacturing Origin: USA
• Mates with Female Width: 0.25 Inch
• Mates with Male Tab Width (W'): 0.25 Inch
• Overall Length (Imperial): 1.05 in
• Pad Width: 0.25 in
• Solution for: Wireless Network: Infrastructure Accessories
• Tab Width: 0.110
• Terminal Style: Standard
• Terminal Type: Standard
