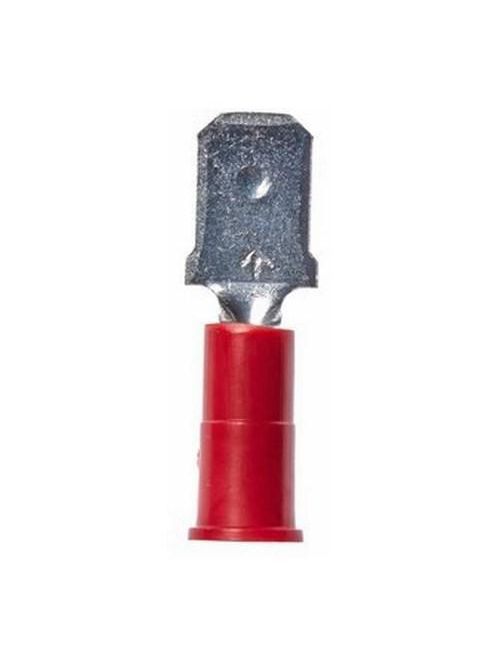

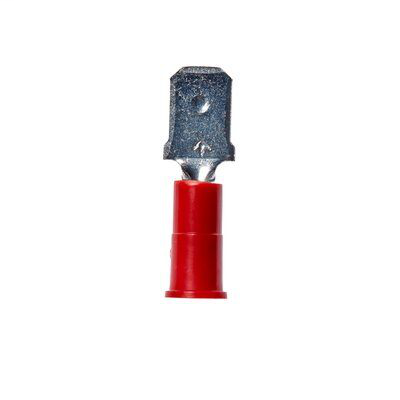

3M MTV18-250Q 25/Bag Male Disconnect Vinyl Insulated Highland Bag
$8.89/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MTV18-250Q
North Coast Part # 878023

Features

  • Red vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve allows for easy insertion of wires
  • 3M™ Highland™ Color-Coded Standard Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • This male disconnect terminal offers excellent holding force
  • 3M™ Highland™ Color-Coded Standard Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve. The sleeve helps guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide female tab
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/bag

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611602923
  • Agency Approvals: UL and CSA
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Butted
  • Brand: Highland™
  • Conductor Size: 22 - 18 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Male
  • Fastener Orientation: Male
  • Insulation Material: Vinyl
  • Manufacturing Origin: USA
  • Mates with Female Width: 0.25 Inch
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Overall Length (Imperial): 0.93 in
  • Pad Width: 0.25 in
  • Solution for: Wireless Network: Infrastructure Accessories
  • Tab Width: 0.187
  • Terminal Style: Standard
  • Terminal Type: Standard

Overview

UPC 05112860031
GTiN 00051128600313
Color Red
Type Disconnect
Material PVC
Wire Size 22-18 AWG
Family Brand Name Highland
Terminal Size .25
TC Connection Disconnect
Sub Brand Highland
Overall Length 0.93 in
