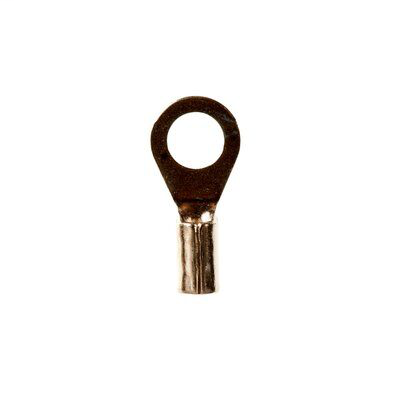

3M MU14-10RHTK High Temperature Butted Seam Ring Tongue Terminal
$0.19/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MU14-10RHTK
North Coast Part # 429165

Features

  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ High-Temperature Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.
  • Beveled mouth offers easy insertion of wires
  • For use in ovens, motors, light fixtures and other applications
  • 3M™ Scotchlok™ High-Temperature Ring Tongue Terminal has a non-insulated, butted-seam barrel with a beveled mouth to guide the wire into position easily.
  • Stud size #10
  • Accommodates wire sizes 16 to 14 AWG
  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • 1000/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610046585
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Connection Width (Imperial): 0.19 in
  • Connection Width (Metric): 4.826 mm
  • Maximum Operating Temperature (Celsius): 482 Degree Celsius
  • Overall Length (Imperial): 0.7 in
  • Overall Width (Imperial): 0.33 in
  • Terminal Type: Ring

Overview

UPC 05400701759
GTiN 00054007017592
Type Ring
Stud Size 10
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.7 in
Width 0.33 in
Thickness 0.03 in
Barrel Type Butted
Material Steel
Terminal Style High Temp
Terminal Type Ring
Conductor Size 16 To 14 AWG
Insulation Material Non-Insulated
Barrel Length 0.25 in
Max Operating Temperature 482 C
Overall Length 0.7 in
