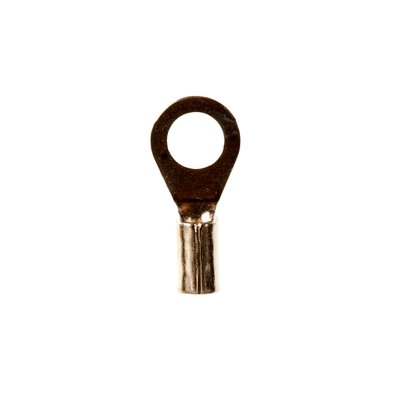

3M MU14-10RHTX MU14-10RHTX RING, HI
Product image thumbnail 0
Product image thumbnail 1
$0.75/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MU14-10RHTX
North Coast Part # 673637

Features

  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • For use in ovens, motors, light fixtures and other applications
  • Stud size #10
  • Accommodates wire sizes 16 to 14 AWG
  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Connection Width (Imperial): 0.19 in
  • Connection Width (Metric): 4.826 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 14 AWG
  • Maximum Operating Temperature (Celsius): 482 Degree Celsius
  • Minimum Conductor Size: 16 AWG
  • Overall Length (Imperial): 0.7 in
  • Overall Length (Metric): 17.78 mm
  • Overall Width (Imperial): 0.33 in
  • Overall Width (Metric): 8.38 mm
  • Product Color: Metal
  • Terminal Type: Ring

Overview

UPC 05112858771
GTiN 00051128587713
Type Ring
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.7 in
Width 0.33 in
Thickness 0.03 in
Barrel Type Butted
Material Steel
Stud Size 10
Terminal Style High Temp
Terminal Type Ring
Conductor Size 16 To 14 AWG
Insulation Material Non-Insulated
Color Metal
Max Operating Temperature 482 C
Overall Length 0.7 in
