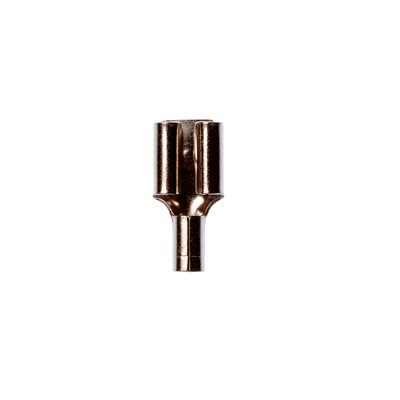

3M MU14-250DFHTX 100/Bottle Non-Insulated High Temperature Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.94/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MU14-250DFHTX
North Coast Part # 12568

Features

  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • This high-temperature female disconnect terminal has dents and rolled edges to allow for excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 16 to 14 AWG
  • Made of durable steel for high-temperature applications and has corrosion-resistant nickel plating
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires

Specifications

  • Barrel Inside Diameter: 0.095 Inch
  • Barrel Length (Imperial): 0.23 Inch
  • Barrel Style: Butted
  • Conductor Size: 16 - 14 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Insulation Material: Non-Insulated
  • Mates with Female Width: 0.250 Inch

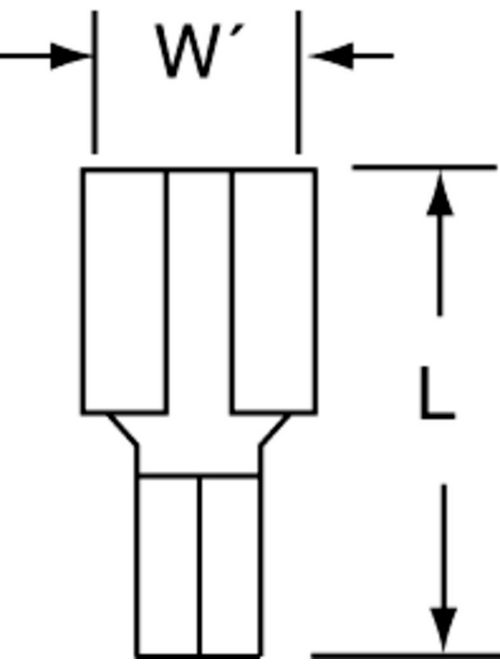

  • Mates with Male Tab Width (W'): 0.250 Inch
  • Maximum Conductor Size: 14 AWG
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 100
  • Overall Length (Imperial): 0.64 in
  • Overall Length (Metric): 16.256 mm
  • Overall Width (Imperial): 0.25 in
  • Product Color: Metal
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Terminal Style: High Temp
  • Terminal Type: Standard

Overview

GTiN 00051128589786
Type Disconnect
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Product UPC 05112858978
Length 0.64 Inch
Thickness 0.032 in
Barrel Type Butted
Terminal Style High Temp
Terminal Type Disconnect
Conductor Size 16 To 14 AWG
Insulation Material Non-Insulated
Barrel Length 0.23 in
Width 0.25 in
Color Metal
Overall Length 0.64 in
