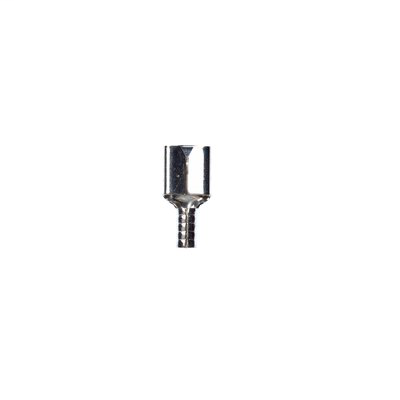

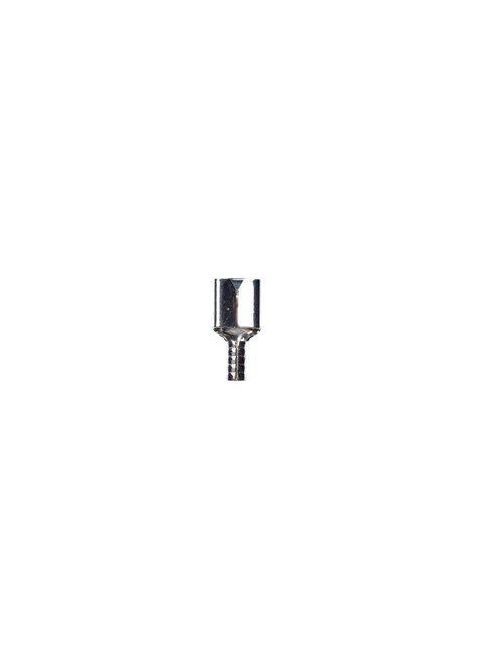

3M MU14-250DFX MU14-250DFX FM DISC
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.79/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MU14-250DFX
North Coast Part # 673633

Features

  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 16 to 14 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals

Specifications

  • Barrel Inside Diameter: 0.080 Inch
  • Barrel Style: Butted
  • Conductor Size: 16 - 14 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • CSA File Number: LR22190
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Insulation Material: Non-Insulated
  • Mates with Female Width: 0.250 Inch
  • Mates with Male Tab Width (W'): 0.250 Inch
  • Maximum Conductor Size: 14 AWG
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 100
  • Overall Length (Imperial): 0.66 in
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.250
  • Terminal Style: Standard
  • Terminal Type: Standard
  • UL File Number: E70512

Overview

GTiN 00051128587089
Type Disconnect
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Product UPC 05112858708
Length 0.66 Inch
Thickness 0.032 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Disconnect
Conductor Size 16 To 14 AWG
Insulation Material Non-Insulated
Overall Length 0.66 in
